Vacuum Transformer Oil Filter Machine Zyd-100 Vacuum Oil Dehydration Machine for Transformer Drying

We strive to provide our customers with superior Insulation Resistance Tester, vlf ac testing equipment, air drying machine and first-class services that can fully meet their requirements! We are striding forward in the direction of internationalization with steady steps. From manufacturing to creation, our company bring high quality products to consumers at home and abroad. Our company pays attention to technology investment, regards quality as life and realizes the transformation from scale development to quality development.

1. Introduction

Thanks to absorbing the advanced technology of similar products at home and abroad, our ZYD Series Double-stage Vacuum Transformer Oil Filtration Machine has excellent performance in design, production and cost. The oil purification process and overall performance are winning more and more orders from the world with its advantages of high working vacuum, fast oil filtration speed, oil quality protection and low maintenance.

ZYD Series Transformer oil purification system is mainly used for for maintenance of power transformer by purifying the oil used in transformer, circuit breakers, mutual inductors, cable and capacitors. It can effectively improve the properties of transformer oil from 11KV to 800KV.

2. Why Transformer Oil Filtration is Required?

Transformer plays an important role in the generation, transmission and distribution of electrical energy. Transformer oil is the main insulation and cooling medium of oil-immersed transformers. Its dielectric strength and chemical composition directly affect the performance of the transformer.

Due to the highly hygroscopic nature of the transformer oil, it absorbs moisture from windings, which leads to gradual deterioration of dielectric strength. Also there are some waste impurities, gas contents in the transformer oil which destroy the oil's quality. And the oil is in contact with oxygen, it is easy to oxidize and deteriorate at high temperatures. Therefore, the transformer oil filtration machine should be carried out when the transformer is installed.


In order to prevent the deterioration of the oil quality and the impact on the safe operation, the oil samples for normal operation should be tested and analyzed regularly and periodically, and the oil should be processed and filtered according to the analysis results. The inspection cycle of oil chemical supervision for distribution operation is specified to be at least once every two years.


Note: ZYD series transformer oil purifier needs to circulate handling the transformer oil for about 2-3 times to get a higher quality final oil. It is necessary to circulate running the machine. The circulating running is for heating the transformer oil, and it is necessary to remove small water from transformer oil. The small water will be removed according to its heating and vacuum system. All the one-time or one circle running to get final transformer oil is not reasonable.

3. Oil Results after Filtered by ZYD Series

4. Features

1. Double-stage high vacuum pumping system, strong power of vacuum evacuating, ultimate vacuum value≤ 5Pa.

2. Big capacity of moisture ands gas separating chamber, efficient oil film evaporation, increasing separating size and separating time to ensure the dry-level and dielectric strength of oil improving greatly.

3. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, rapidly and effectively separate water, gas from oil.

4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies, maximum remove the particles and impurities.


5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.

6. Double-safety liquid level controller, pressure protective system and foaming elimination system to ensure machine operating easily and safely.

7. Adopt interlocked protective system, connecting oil discharge pump, heater and liquid level sensor, avoids blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.

8. Can be used independent device for vacuuming transformers and vacuum oil filling for power equipment.

9. Can work online for over 150 hours continuously, high reliable and long time running.

5. Technical Parameters

Note: 1. The dimension and weight will be changed with changing of technical specs.

2. All the specs can be customized according to client's requirements.

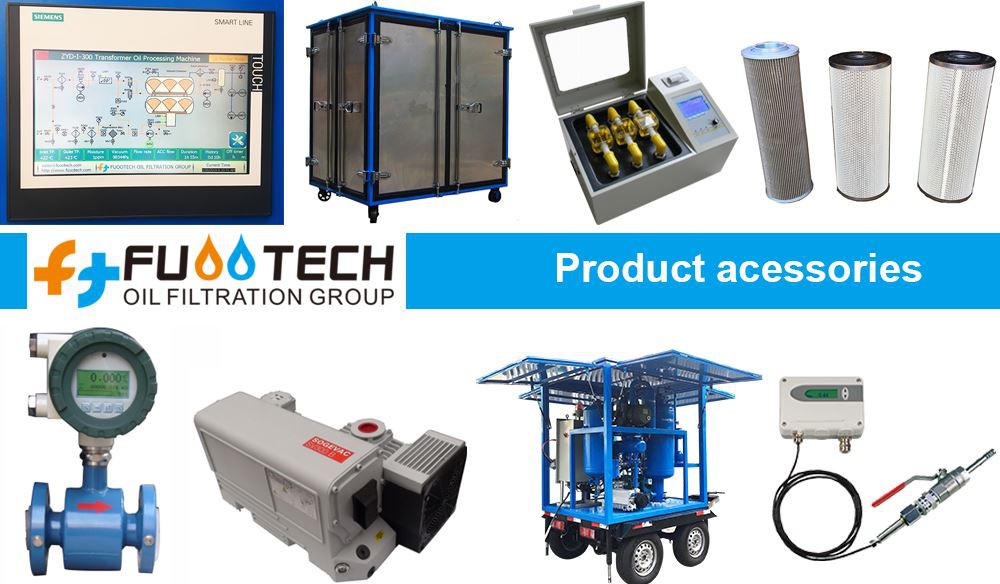

6. Optional Components

1) Weather-proof metallic enclosure for outdoor operation (weather proof, waterproof, dustproof etc.).

2) Mobile trailer (single-axle or double-axle as designed), mounted with vehicles to move to outside fields for filtration works.

3) Main components such as vacuum pump, oil pump, and electrical parts can be chosen in different brands as per client's favourite (such as DELIXI, SIEMENS, LEYBOLD, ABB etc.), different brands, different price with different delivery time.

4) On-line Moisture (PPM) meter.

5) Digital or Turbo Flow meter.

6) Automatic Insulating Oil Dielectric Strength (BDV) Tester.

7) PLC controlling system

8) A few consumables and spare parts including filters and tools for 2 years' operation are also strongly recommended to clients for spare and replacement in the future.


7. Packing and Delivery

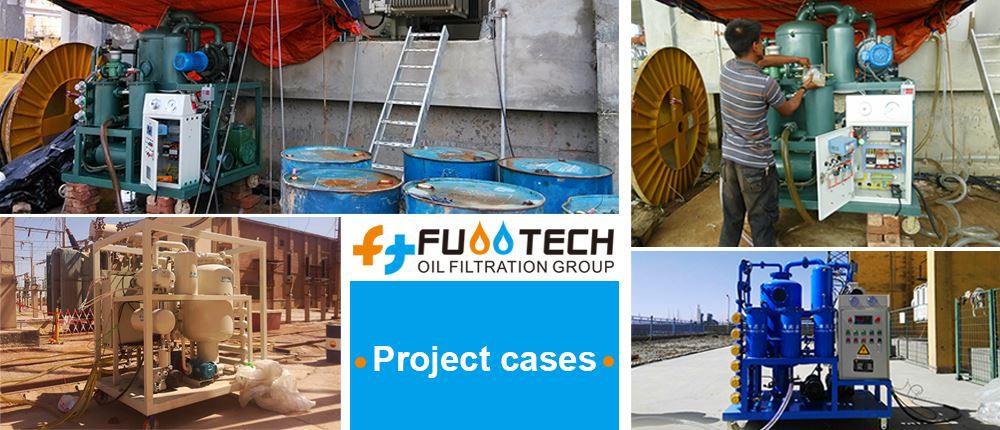

8. Onsite Projects

9. Certificates

10. Benefits from our Vacuum Transformer Oil Purifier

1) Purifying your transformer oil high efficiently

2) Maintain your transformer oil always in good status, extend the oil's lifespan

3) Reduce and save oil costs in terms of consumption, replacement and inventory

4) Solve your waste transformer oil disposal problem

5) Ensure your transformers working normally with qualified oil properly

6) Protect your transformers and power equipment from oil pollution problems

7) Reduce your maintenance time, energy and cost on transformers and power plant

8) Create a safety and cleaning oil-using environment for your transformers of power station

9) Bring a green oil ideal to the world and save oil energy for the world

We think from the customer's point of view, understand their needs and ensure that the Vacuum Transformer Oil Filter Machine Zyd-100 Vacuum Oil Dehydration Machine for Transformer Drying and services we provide to them are built to last. The market is a yardstick to test the business activities of the company, and is the standard to verify whether the company has core competitiveness. Our corporate culture is to create value, teamwork, benefit employees and give back to society.
