Name: FS-HDM Turnkey Waste Motor Oil Engine Oil Refinery Machine
Brand: Fuootech
SKU: 240179689

waste oil purification1

Advanced technology

Engine Oil Refining Machine

Full-bridge Rectification Distillation Technology

Traditional distillation is just a simple thermal distillation separation process. It uses the difference in boiling point of each component in the mixed liquid (solid) to evaporate the low-boiling point component, and then cools it for separation, that is, two units of evaporation and cooling. simple operation process.

The unique full-bridge rectification distillation technology newly developed by our company perfectly combines simple distillation with multi-stage differentiation, so as to grade and separate each component in the mixture to achieve the specified highest purity, forcing the gas and liquid in multi-stage distillation to reverse flow occurs in the catalytic system and form a vortex to enter into the fine-distillation tower, and then reuse the heat flow principle.

The components in the mixed gas and liquid have different distillation ranges. In the process of contact with each other, the light components and heavy components in the liquid phase are rectified, and the light components are generated into the gas. The heavy components in the gas phase generate the liquid phase, thereby achieving a steady flow process of the liquid mixture and achieving perfect separation. The gas is compressed and split, and then compressed and generated into liquefied petroleum gas to achieve full utilization of resources and achieve the highest level of zero environmental pollution.

Oil Refining Machinery Parameters

Parameters	Unit	Model Names
Parameters	Unit	FS-HDM-1	FS-HDM-2	FS-HDM-3	FS-HDM-4	FS-HDM-5	FS-HDM-6	FS-HDM-7
Treatment Capacity	Tons/day (24 hours continuously)	5	10	15	20	25	30	35
Oil Production Rate	%	More than 98% (along with our Anaerobic Pyrolysis Separation System of Hazardous Waste)
Raw Materials		waste engine oil, Tire/plastic pyrolysis oil, waste lube oil, waste motor oil, heavy oil, crude oil, etc
Outputs		Only Refined oil products & small quantity of Carbon powder (along with our Anaerobic Pyrolysis Separation System of Hazardous Waste)
Avg. Power	Kw/h	55	66	95	135	180	230	280
Vacuum Degree	Mpa	≤-0.015～-0.1
Working Oil Temp.	℃	175 ~ 550
Power Supply	V	110/ 220 /380 /415 / 440 V, 3Phase, 50Hz or as per request
Noise	db(A)	≤80
Running Process		Continuous

MAIN COMPONENTS ON FS-HDM PLANT

Item No.	Parts Description	Main Function & Advantage	Required or Optional
1	Pre-treatment System by Physical flocculation technology	Greatly reduces distillation residues Avoids clogging of pipelines and tanks, greatly reduces safety risks. Increase oil recycling rate and increase final oil quality	Required
2	Thin Film Evaporator using full-bridge rectification technology to quickly and effectively separate moisture and light components	Cyclone film electromagnetic heating replaces traditional electric heating method, effectively inhibiting heating coking, much safer; 720 degree heating without any blind spots, the oil molecules are evenly heated and not easily damaged. No bearings, No failure; The evaporation area is large, dozens of times that of the evaporation tower on the market, more efficient; Precise electrical control system ensures oil quality.	Required
3	Main Reactor made of special self-developed material, can work under 1000℃ for a long time without any safety risks. (avoiding material softening, leakage, corrosion, etc.).	Deeply crack and absolutely vaporize high-hydrocarbon materials to achieve a higher oil yield (eg. the vaporization temperature of petroleum rubber is 860℃); Self-developed materials have a higher safety factor than other competitors, avoiding material softening, leakage, corrosion, etc. Other competitors mainly use the traditional materials such as hexadecanoic manganese, boiler steel, with a temperature resistance of at 400℃, but the final boiling point (FBP) of petroleum is normally 525℃. ); With anti-coking system to inhibit coking in the tank, reduce labor costs. The main reactor coil is made of special self-developed materials and will never oxidize or fracture; The working principles of the coil and the main reactor are well matched. They may work under 1000℃ for a long time and can be repeatedly installed and disassembled for maintenance (ordinary high-temperature wires and nickel-plated wires used by competitors cannot be repeatedly disassembled and maintained).	Required

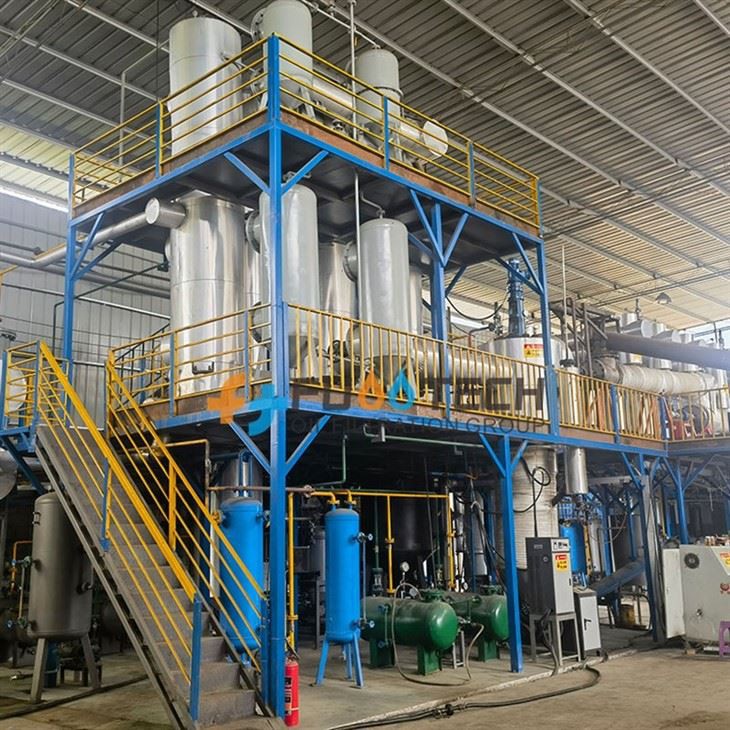

oil refinery plants

Waste oil mainly means the waste lube oil generated from all kinds of machinery, vehicles and ships. We also call it waste engine oil, used motor oil, old lubricant oil, black heavy oil (mazut), waste oil sludge, etc. It's caused by the lube oil used in all kinds of engines after a long time of use. Due to the outside pollution, the lube oil will generate a large quantity of gum and oxide, which will reduce the friction control, wear resistance, cooling, sealing and vibration attenuation of the lube oil, which have to be changed by new lube oil.

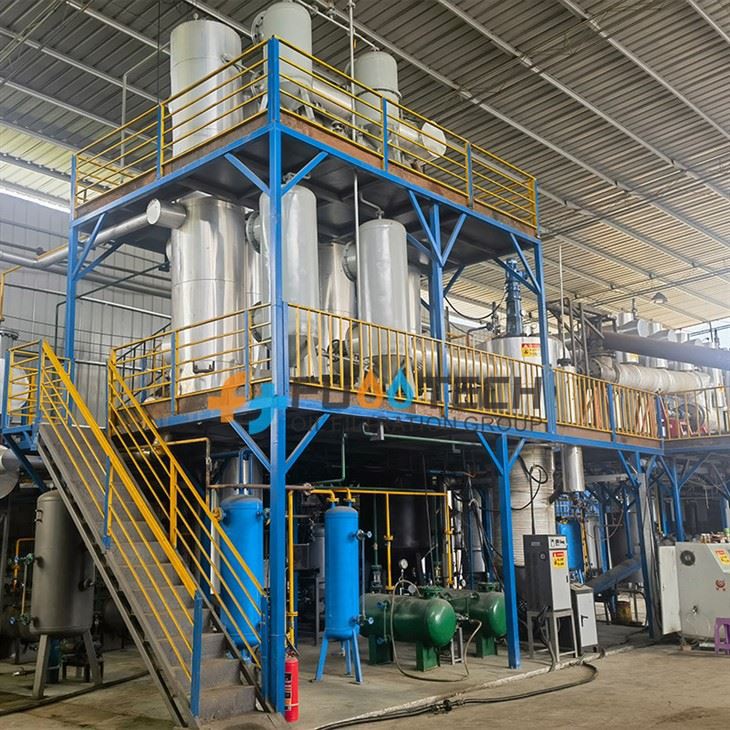

Waste Motor Oil Refining Plant

Anaerobic Pyrolysis Separation System of Hazardous Waste

Pyrolysis is a technology with a long history. Wood, peat and most organic matter can be gasified and pyrolyzed. Depending on the chemical process used, pyrolysis is called carbonization, coking, gasification, and thermal decomposition.

Hazardous waste is separated and processed into three states in an oxygen-free environment at <1000℃ by our special anaerobic pyrolysis separation equipment so as to reduce the quantity of wastes and pollution, meanwhile, increase the oil production rate.

This system was developed to minimize the discharge of solid waste and liquid waste from industrial production. All organic waste can be processed through physical properties such as solid, liquid, vapor and ignition points at different temperatures. This device carries out regeneration and comprehensive utilization and harmless or reduced emissions. This device can solve the problems of energy conservation and emission reduction in various industries and manufacturing industries.

Adopting this technology, this parts can continuously operate safely for a long time at high temperatures below 1200 degrees (the eddy current control system, coils, main materials, and processes are all self-developed). This device will never form knots or trap dirt inside; The outdated products from other companies are facing the risk of explosion due to knots or trap dirt inside the tanks & pipelines.

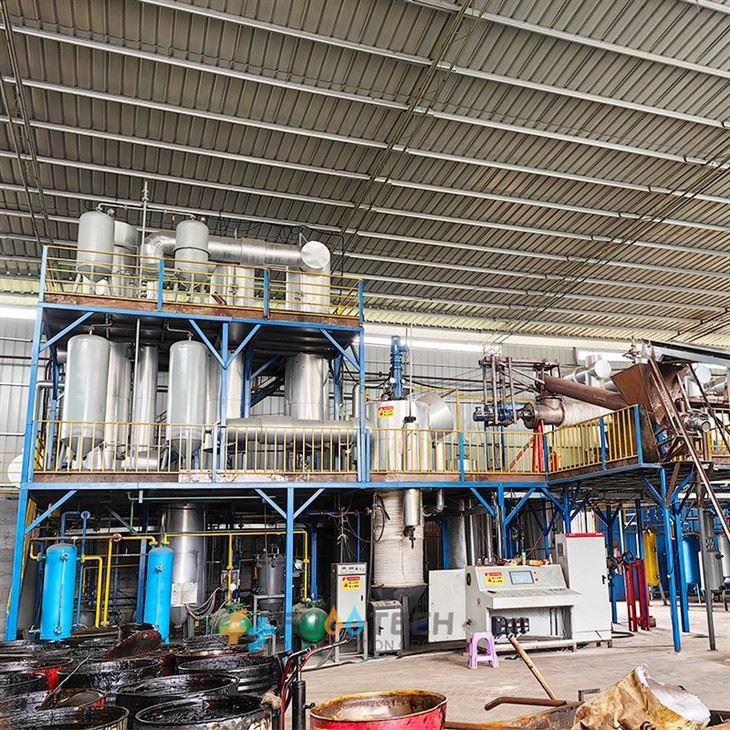

oil filtration

Catalysts, adsorbents, filter media:
A. Can be recycled repeatedly (if equipped with anaerobic carbonization equipment, it can be regenerated in a controlled manner);

B. No further hazardous waste will be generated (because waste catalysts and adsorbents contain petroleum hydrocarbons and need to be handed over to professional institutions for disposal);

C. Reduce the purchase cost of catalysts and adsorbents.

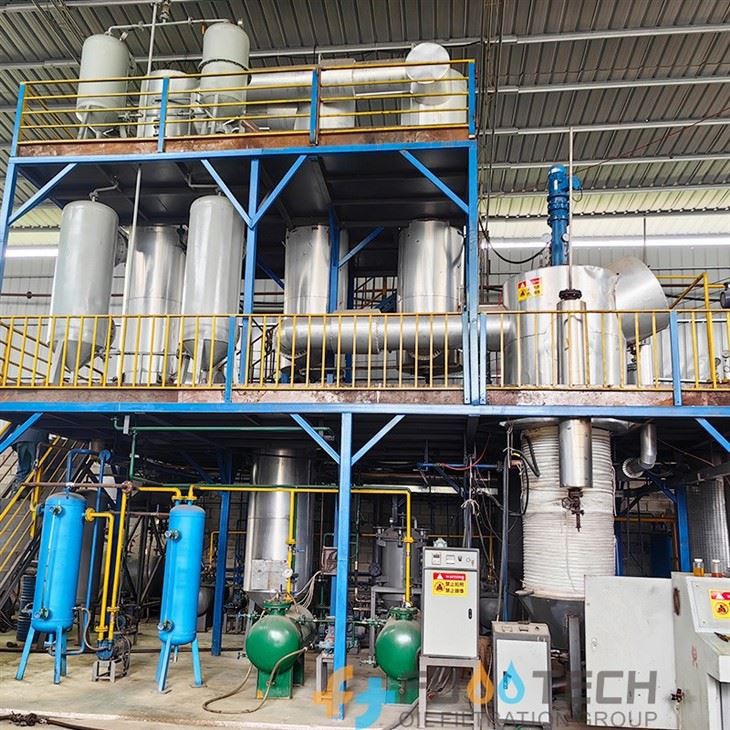

oil refinery
