1. Application

FTIR-15M Digital HV Insulation Resistance Tester is widely used in maintenance of electrical equipment in transformer substation, power plant, etc. It is suitable for carrying out measurement of insulation resistance(IR), polarization index(PI), absorption ratio (DAR), ramp(RAMP), filter(FR, 10s, 20s, 30s, 40s 4 choices), voltage(V), capacitance(uF), current(nA) of all kinds of high voltage equipment, including switchgear, transformers, reactors, capacitors, motors, generators and cables, etc.

GD3129 is the perfect test tool for early identification and discovery of preventive or predictive maintenance plans for potential equipment failures. It is of great significance to ensure product quality and the safety of people and equipment in operation. The insulation performance of electrical products is one of the important signs to evaluate the insulation quality, which is reflected by the insulation resistance test.

This instrument is suitable for the insulation resistance test of electrical equipment, transmission lines and other large equipment under the environment of large capacity, high voltage and strong induction. It is a commonly used and indispensable instrument for electric power, telecommunications, meteorology, computer room, oil field, electromechanical installation and maintenance, and power supply departments of industrial and mining enterprises.

2. Working Principle

FTIR-15M Insulation Resistance Tester has perfect testing function of various insulation resistance parameters and excellent anti-interference ability, which can be used to test the insulation resistance of large capacity high voltage electrical equipment and transmission lines in strong inductive environment such as substation.

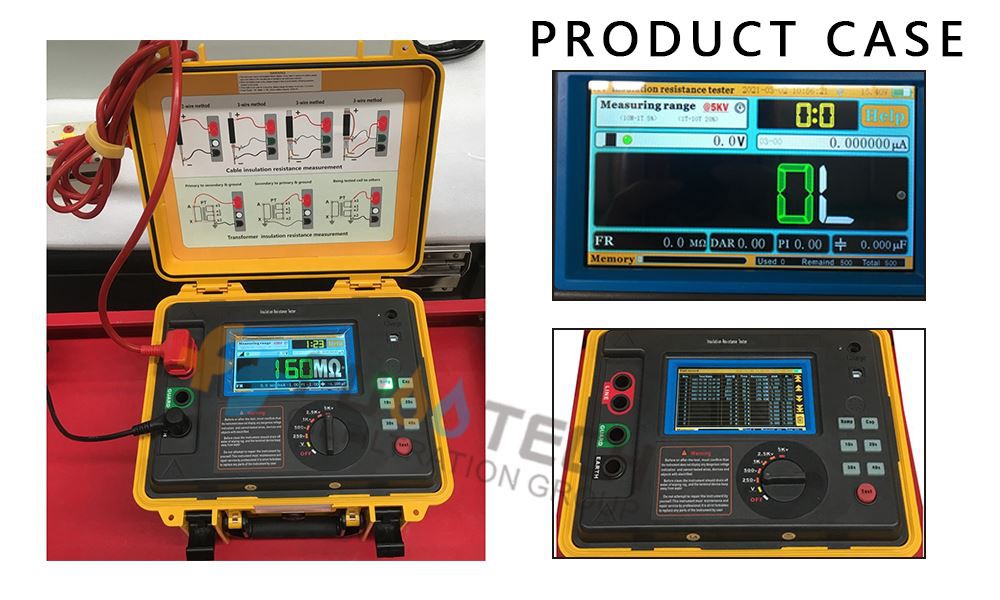

This 15kv megger adopts true color touch screen, all test data and battery power are displayed on the same screen at a glance, and the combination of knob switch and key makes the operation very simple. The user does not need to memorize the operation method. Click "HELP" on the screen to pop up the operation method, which can effectively guide the user to operate the instrument.

FTIR-15M Digital Megohmmeter has the function of fast discharge, which can discharge the voltage of the tested object instantaneously without additional discharge circuit. The voltage monitor of the instrument can automatically monitor the live voltage of the tested object. If the voltage exceeds 36V, the test will be automatically prohibited, which can effectively protect the instrument and operators.

FTIR-15M digital mega ohm meter adopts large capacity rechargeable lithium battery pack. The test timer of the instrument automatically records the test time and stores the test results with date and time. The touch screen can easily access the recorded historical data. The completely isolated USB interface can safely upload the test data to the PC. The instrument is equipped with test line with double insulation and shielding layer, and the high voltage bar is equipped with replaceable alligator clip and hook, which can adapt to various test places. The instrument adopts a solid double-layer shell structure, and the protection grade of the outer box is IP65, which can prevent the invasion of moisture and dust during transportation and storage, and effectively protect the instrument from collision.

3. Technical Parameters

4. Functions & Featuress
1). Insulation resistance measurement range up to 15kV(30TΩ), 10kV(20TΩ), 5.0kV(10TΩ).

2). 7 voltage output steps of 250V, 500V, 1kV, 2.5kV, 5kV, 10kV, 15kV

3). Max. Short current 7mA.

4). Insulation resistance(IR), polarization index(PI), absorption ratio(DAR)

5). Ramp(RAMP), filter(FR), voltage(V), capacitance(uF).

6). Automatically monitor the live voltage of the measured object, and automatically prohibit the test if the voltage exceeds 36V, which effectively protects the instrument and the operator.

7). Timing function, automatic record the test time.

8). Automatically discharge high voltage after measurement is completed, the discharge time is no more than 30 seconds.

9). Automatic power off function.


10). Large LCD screen dot matrix display with stable performance.

11). Double-layer shell structure, sturdy and durable, protection grade IP65.

12). Large capacity rechargeable lithium battery pack.

13). Storage function, can automatically store 1000 sets of real-time test data with test date and time and test timing.

14). Upload function, equipped with USB interface, record data can be uploaded to computer for statistical analysis of data.

15). The combination of touch color screen, button and wave band knob, the function perfect can be directly tested with one button, the operation of inquiry record is simple and convenient.

16). Rich display content which can display on same screen : various test modes and insulation resistance value, output voltage and the voltage of tested object, current, test timing, test time, battery power, operation help, etc.
