Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of 6000 liters/hour heavy fuel oil centrifuging oil separator in China, also supports customized service with low price. Welcome to wholesale CE approved 6000 liters/hour heavy fuel oil centrifuging oil separator made in China here from our factory. Also, one year warranty is available.

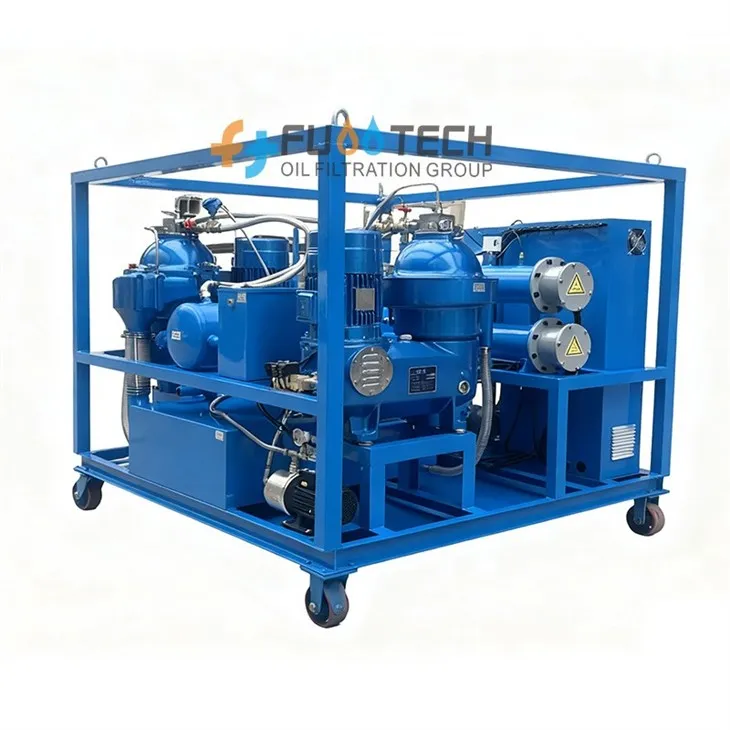

Heavy Fuel Oil Centrifuging Oil Separator
FCF Series is a high-speed centrifugal separator intended for marine and land applications. It is specifically designed for cleaning of mineral oils from water and solid particles (sludge). The cleaned oil is discharged continuously, while the sludge is discharged at intervals.
FCF Series integrates the centrifugal separator, electrical control box, oil pump, heat system, heat exchanger, coarse filter, fine filter, etc. on a same skid base.
Heavy Fuel Oil Centrifuging Oil Separator Parameters:
|
Parameters |
Unit |
FCF-6000 |
FCF-8000 |
|
|
Processing capacity |
HFO ≤180 cst |
Liters/hour |
6000 |
8000 |
|
Rotation Speed |
rpm |
8500 ~ 9000 |
||
|
Particles Discharge mode |
Automatic |
|||
|
Water Discharge mode |
Automatic |
|||
|
Working Pressure |
MPa |
≤0.3 |
||
|
Input temperature of raw material |
℃ |
＞40, the higher, the better. |
||
|
Oil Temperature Control |
℃ |
0 ~ 100 (automatic control) |
||
|
Power Supply |
415V, 50HZ, 3PH (or as per request) |
|||
|
Working Noise |
dB(A) |
≤75 |
||
|
Lift |
M |
20 |
||
|
Suction |
M |
5 |
||
|
Power for Centrifuge |
KW |
7.5KW * 2 |
11KW * 2 |
|
|
Heating Power (adjusted available) |
KW |
72 |
90 |
|
|
Total Power |
KW |
89 |
115 |
|
|
Filter Precision |
μm |
≤5 |
≤5 |
|
|
Water content after purification |
ppm |
≤100 |
≤100 |
|
|
Inlet / Outlet Diameter |
mm |
DN25 |
DN32 |
|
|
Weight |
KGS |
1400 |
1900 |
|
|
Dimension |
mm |
1850×1450×1750 |
1960×1550×1850 |
|
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
Heavy Fuel Oil Centrifuging Oil Separator Working Process Description :
After machine is started, oil pump pumps the waste oils into machine, coarse filter remove the big particles first; then oil enter into heater system and heat exchanger.
When the temperature reaches 95℃ or setting value (for HFO) , three-way valve is open and switching to centrifuges, oil starts enter into centrifuges to separate the large quantity of water and particles inside by the strong centrifuge forces.
After that, water and particles are drained into discharge tank, clean oil flows into the fine filter to remove tiny impurities. Finally, clean oil is obtained from oil output.
FAQ
