1. Description

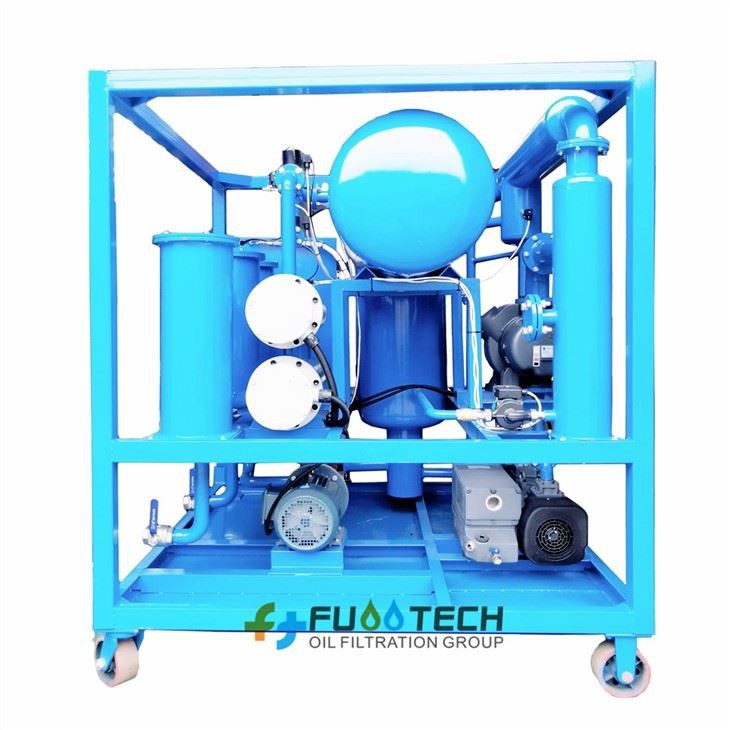

The FUOOTECH mobile Double-Stage High Vacuum Transformer Oil Dehydration Plant (Model ZYD-T-100 with capacity of 6000 LPH) is used for transformer oil dehydration, degasification and filtration.
As a necessary maintenance equipment for power transformers, it can effectively remove free and soluble water, gases and particulate matters contained in the transformer oil, thereby increasing and maintaining the dielectric strength (BDV value) of transformer oil, performing good insulation function in power transformers.
Double-Stage High Vacuum Transformer Oil Purifiers (Model ZYD-T-100) adopt two-stage vacuum pump unit, namely rotary vane vacuum pump and booster roots vacuum pump, is especially applied to transformer oil treatment of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission and distribution line.
In addition, Model ZYD-T-100 can also be used as an vacuum drying and vacuum filling equipment during transformer maintenance.
2. Basic Information of ZYD-T-100 Oil Dehydration Plant
- Flow Rate: 6000LPH
- Double Stage Vacuum Dehydration
- Double Stage Vacuum Degassing
- Three Stage Filter to 1micron
- Fully Automatic PLC System & Touch Screen
- Working Vacuum: -0.085 ~ -0.099MPa
- Ultimate vacuum: less than 10Pa
- Working Pressure: less than 0.4MPa
- Dimension (L*W*H): 1850 * 1780* 1780mm
- Net Weight: 1350KGS
- Heater Power: 90KW
- Total Power: 101KW
- Power Supply: 220V/240V/380V/400V/415V/440V/480/, 50/60Hz, 3Phase (or as per request)
3. Technical Parameters
|
Parameters |
Model Unit |
ZYD-T-30 | ZYD-T-50 | ZYD-T-100 | ZYD-T-150 | ZYD-T-200 | ZYD-T-250 | ZYD-T-300 | |
|
Flow Rate |
L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
|
Recommended Max. oil volume in one storage tank |
Tons | 7 | 12 | 22 | 30 | 42 | 50 | 66 | |
|
Working Vacuum Degree |
MPa | -0.08 ～ -0.099 | |||||||
|
Working Discharge Pressure |
MPa | ≤ 0.4 | |||||||
|
Temperature Control Range |
℃ | 20 ～ 100 | |||||||
|
Operation Temperature |
℃ | 40 ~ 65 (60 ~ 65℃ is best) | |||||||
|
Power Supply |
380V, 50Hz, 3 phases, 4 wires (or as per your requirements) | ||||||||
|
Working hours without Trouble |
Hour | 4000 | |||||||
|
Continuous Working Hours |
Hour | 150 | |||||||
|
Ambient Temperature |
-25 ～ 55℃ | ||||||||
|
Working Noise |
dB(A) | 65 ~ 85 | |||||||
|
Heating Power (adjusted available) |
KW | 30 | 60 | 90 | 120 | 135 | 150 | 180 | |
|
Total Power |
KW | 33 | 66 | 101 | 135 | 152 | 168 | 208 | |
|
Inlet/Outlet |
mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
|
Weight |
Kg | 850 | 1160 | 1350 | 1500 | 1680 | 1800 | 2000 | |
|
Dimension |
Length |
mm |
1600 |
1780 |
1850 |
2050 |
2100 |
2300 |
2500 |
| Width | mm | 1150 | 1260 | 1350 | 1430 | 1550 | 1660 | 1750 | |
| Height | mm | 1780 | 1830 | 1900 | 1960 | 2060 | 2100 | 2250 | |
Note: The dimension and weight will be changed with changing of technical specs.
FUOOTECH reserves the rights to any upgrading without notification.
4. Oil Performance Before and After Purification
|
Moisture (Water Content) |
≤ 5 PPM |
|
Gas Content |
≤0.03% (Vol) |
|
Impurities Degree (Filtration precision) |
≤ 1 micron (no free carbon) |
|
Breakdown Voltage (Dielectric Strength) |
≥70 ~ 80 KV |
|
Flash Point |
≥135℃ |
|
Cleanliness |
≤NAS 1638 Grade 6 |
5. Special Features & Advantages
-
Double-stage high vacuum improve the effect and efficiency of oil dehydration and degasification.
-
Multi-stage filtration ensures the high oil filtering accuracy.
-
Multifunctional integrated equipment, can be used oil treatment, vacuum oil filling and vacuum drying. (*More functions can be customized according to your requirements.)
-
The uniquely designed "T" vacuum chamber enlarges the oil evaporation area more than the traditional design, so as to achieve a better dehydration and degassing effect.
-
Model ZYD-T-100 Transformer Oil Purifier can work offline or online under the safe operation after a special design.
-
A standalone oil regeneration device can be mounted or connected on its basis for transformer oil regeneration.
-
Online oil measuring kits (mainly including to monitor oil's ppm, particle counter, flow rate, temperature, etc. ), trailer type with road-worthy wheels, weather-proof enclosure and other spare parts are available for selection.
6. On-site Project
7. Packing, Delivery, Shipping and Payment
8. Certificates
9. Accessories
|
Items No. |
Name |
Quantity |
|
1 |
ZYD-T-100 oil dehydration plant |
1 Set |
|
2 |
PVC Oil Hoses for oil inlet and outlet completed with necessary parts |
20 meter |
|
3 |
Repairing & maintenance tools |
1 Set |
|
4 |
Sealing & gasket |
1 Set |
|
5 |
Liquid level sensor |
1 Pcs |
|
6 |
Operation & maintenance manuals |
1 Copy |
