Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of iec156 automatic 60kv 80kv 100kv transformer oil breakdown voltage tester in China, also supports customized service with low price. Welcome to wholesale CE approved iec156 automatic 60kv 80kv 100kv transformer oil breakdown voltage tester made in China here from our factory. Also, one year warranty is available.
Introduction

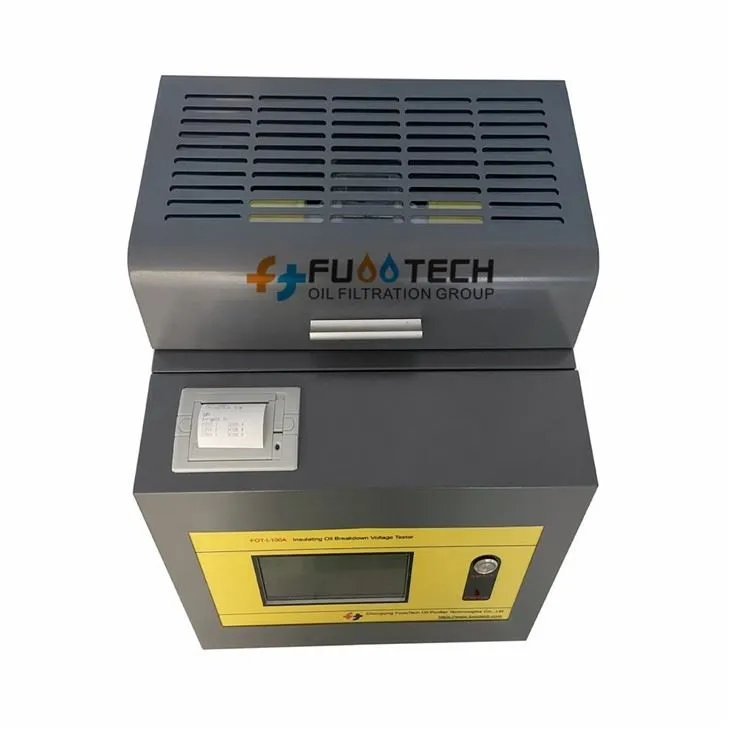

FOT-IA is a fully automatic transformer oil BDV test kit designed with advanced technologies to measure the dielectric strength of transformer oil. Our transformer oil dielectric strength tester is available at reasonable price with option to choose from 60/80/100kV range.
FOT-IA is newly developed by FUOOTECH starting from 2021, which has a quick sensing ability to measure accurate breakdown voltage. This oil bdv tester is compliant with national & international standards for test sequences and also has user friendly customized test sequences.

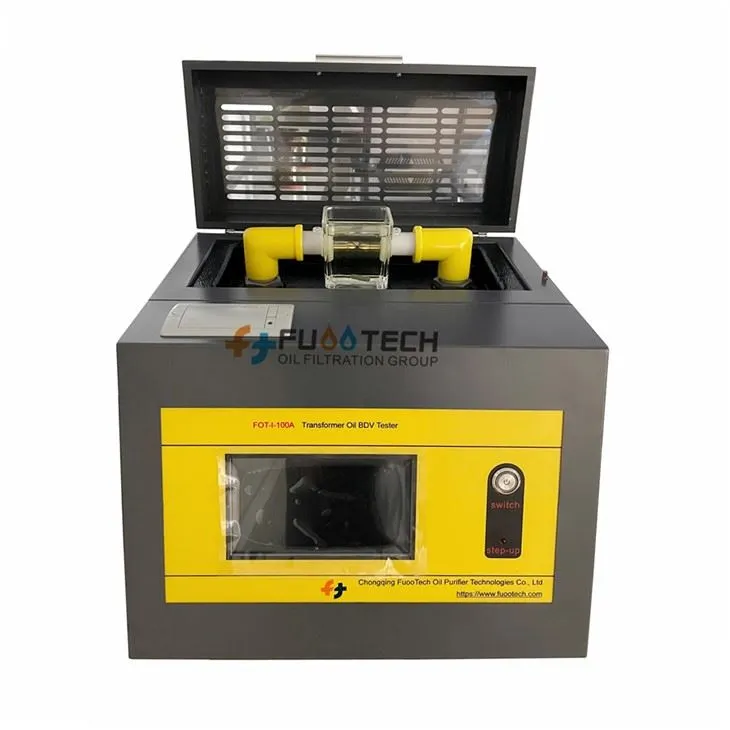

The series comes with a large touch screen display for easy operations. It is provided with internal memory to store test results & an inbuilt thermal printer for on-site report printing. The molded oil test vessel is suitable to test minerals, ester & synthetic oils and comes with an adjustable electrode gap setting to conduct tests as per standards. The portable oil breakdown voltage checker is useful for onsite calibration and verification.
What is oil dielectric breakdown voltage testing?
Simply speaking, a dielectric breakdown voltage test is a measure of the electrical stress that an insulating oil can withstand without breakdown.
The test is performed using a test vessel that has two electrodes mounted in it, with a gap between them. A oil sample to be tested is put into the vessel and an ac voltage is applied to the electrodes. This voltage is increased until the oil breaks down – that is, until a spark passes between the electrodes. The test voltage is then immediately turned off. The voltage at which breakdown occurred is the test result, and is typically evaluated by comparing it with guidelines set out in various standards, or in the oil manufacturer's specifications.
The exact method of performing the test is determined by the standard that is being used. The standard typically defines parameters such as the size and shape of the electrodes, the gap between them, the rate at which the test voltage is increased, how many times the test is repeated and whether or not the oil is stirred during the test.
Who needs to perform dielectric breakdown voltage tests?
There are many types of organization that benefit from carrying out tests on transformer oil. These include:
● Utility contractors (principally in substations)
● Utility companies (principally in power stations)
● Rail companies (locomotive HV step-down transformers and switchgear)
● Oil test laboratories (providing testing services)
● Transformer and switchgear manufacturers (quality control of oil)
● Oil companies (testing new oil during manufacture)
● Power and Distribution Transformer
● Bushing
● Instrument Transformer
● Capacitors
Technical Parameters
|
Parameters |
Specifications |
|
Output voltage |
AC 0 ~ 60KV/80KV/100KV |
|
Rate of voltage rise |
0.5kV to 5kV/sec, every 0.5 increments, 10 gears are selectable |
|
Voltage Accuracy |
±(2% + 2digits) |
|
Voltage Resolution |
0.1KV |
|
Pre-programmed Standards |
IEC156,GB/T507-1986GB/T507-2002,DL429.9,and customized operation to satisfy various international standards |
|
Max. test times |
9 |
|
Stand time |
0 ~ 900 s |
|
Stir time |
0 ~ 250s |
|
Interval time |
0 ~ 900s |
|
PC Interface |
RS232 or USB |
|
Printer |
Inbuilt Thermal Printer |
|
Internal Memory |
100 groups of test results |
|
Ambient Temperature measurement |
0 ~ 99.9°C |
|
Temperature resolution |
0.1°C |
|
Display |
Large LCD colour display (touch screen operation) |
|
Power consumption |
＜200 W |
|
Weight |
38kg |
|
Size |
410mm X 380mm X 370mm |
|
Power supply |
AC220V±10%, 50Hz/60Hz |
|
Working environment |
0°C to +45°C, humidity<85%RH |
|
Standard Accessories |
· Oil Test Vessel with electrodes · Magnetic Oil Stirrer · Electrode gauge · RS232 Data Cord · Main Power Cord · Ground wire · Printer Paper · Tweezers · Spare Fuse · User Manual · Calibration Certificate |
Special Features & Advantages
1) Large colorful Touch Screen Control with English version display, all the selection and procedures can be done by touch panel;
2) Fully automatic microprocessor based;
3) Pre-programmed international test standards;
4) Customized test sequences;
5) Fully automatic testing procedures;
6) Fast testing and printing (Inbuilt Thermal printer );
7) Multi-functional, stable, good repeatability and easy for operation;
8) Internal memory of up to 100 groups of tests, test data can also be upload to PC via RS232 or USB as optional;
9) Small size, light weight, convenient to take to any working site;
10) Complete protection functions protecting tester and operator;
11) F type plug and adapter can be supplied according to client's request;
12) Complete with power supply and carrying bag for accessories;
13) Calibration certificate issued by factory or 3rd party are available.
