Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of diesel oil purifier centrifugal oil purifier in China, also supports customized service with low price. Welcome to wholesale CE approved diesel oil purifier centrifugal oil purifier made in China here from our factory. Also, one year warranty is available.
Products Description

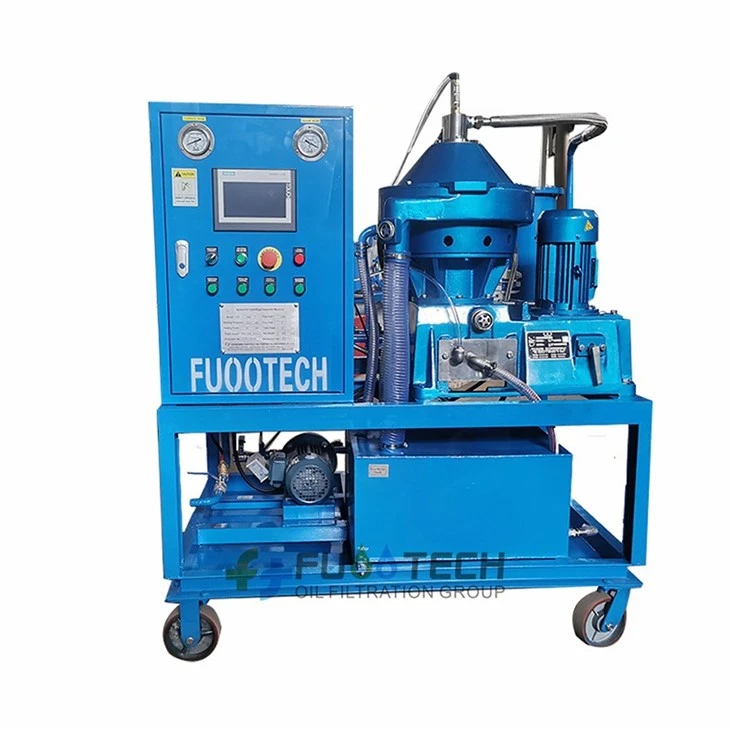

Diesel Oil Purifier Centrifugal Oil Purifier
Centrifugal oil purifier is a common mechanical equipment, which can filter, separate and purify mechanical oil. The machine is equipped with a rotor and filter inside, which can separate impurities and dirt from the oil while retaining high-quality components in the oil, which can extend the service life of mechanical equipment and improve work efficiency and production benefits.
The operation of the centrifugal oil filter is very simple. You only need to pour the oil to be filtered into the drum inside the oil filter, and then start the motor to rotate the drum. The oil will flow into the filter screen inside the machine along the pipe and be filtered by centrifugal force. The impurities and dirt in the oil will be separated out without affecting the chemical composition and properties of the oil. During use, you only need to clean the filter screen regularly, which is very convenient and quick. In addition, all the operation processes of the centrifugal oil purifier are automated, which is very safe and reliable.
Diesel oil purifier has a wide range of applications and can be used in petrochemical, aviation, shipbuilding, machinery, metallurgy and other fields. The machine has high processing efficiency and high-quality filtration effect, which can not only protect the operation of mechanical equipment, but also reduce maintenance costs and working hours, and improve work efficiency and production benefits.
|
Model |
Unit |
FCF-1000 |
FCF-1500 |
FCF-2000 |
FCF-3000 |
FCF-4000 |
FCF-6000 |
FCF-8000 |
|
Capacity |
L/hr |
1000 |
1500 |
2000 |
3000 |
4000 |
6000 |
8000 |
|
Running speed |
r/min |
8000 ~ 9500 |
||||||
|
Working Pressure |
MPa |
≤0.3 |
||||||
|
Temperature |
℃ |
0 ~ 100 |
||||||
|
Power Supply |
|
380V, 50HZ, 3PH (Customized) |
||||||
|
Sludge-discharge |
|
Automatic |
||||||
|
Water-discharge |
|
Manual/Automatic |
||||||
|
Continuous working time |
|
≥150h |
||||||
|
Trouble-free working time |
|
≥5000h |
||||||
|
Noise |
dB(A) |
≤80 |
|||||||
|
Heater Power (if included) |
kW |
24 |
30 |
36 |
42 |
60 |
78 |
90 |
|
|
Total Power |
kW |
27 |
33 |
39 |
46 |
66 |
86 |
101 |
|
|
Inlet & Outlet Diameter |
mm |
DN20 |
DN20 |
DN25 |
DN32 |
DN32 |
DN42 |
DN50 |
|
|
Weight |
Kgs |
580 |
650 |
760 |
850 |
980 |
1100 |
1400 |
|
|
Dimension
|
L |
mm |
1300 |
1380 |
1400 |
1450 |
1550 |
1660 |
1750 |
|
|
W |
mm |
900 |
1000 |
1100 |
1150 |
1230 |
1350 |
1400 |
|
|
H |
mm |
1400 |
1460 |
1500 |
1580 |
1650 |
1750 |
1800 |
|
After treatment |
|
Water content: ≤ 100ppm |
|||||||
|
|
|
Particles: ≤ 5μm |
|||||||
|
|
|
Cleanness: NAS 6 grade |
|||||||
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
