Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of portable fuel polishing systems in China, also supports customized service with low price. Welcome to wholesale CE approved portable fuel polishing systems made in China here from our factory. Also, one year warranty is available.
1. Introduction and Application
PO Series Portable Fuel Polishing Systems developped by FUOOTECH is mainly dealing with unqualified insulating oil, turbine oil, lubricating oil etc., its design is simple, compact, practical and easily to move and maintenace.

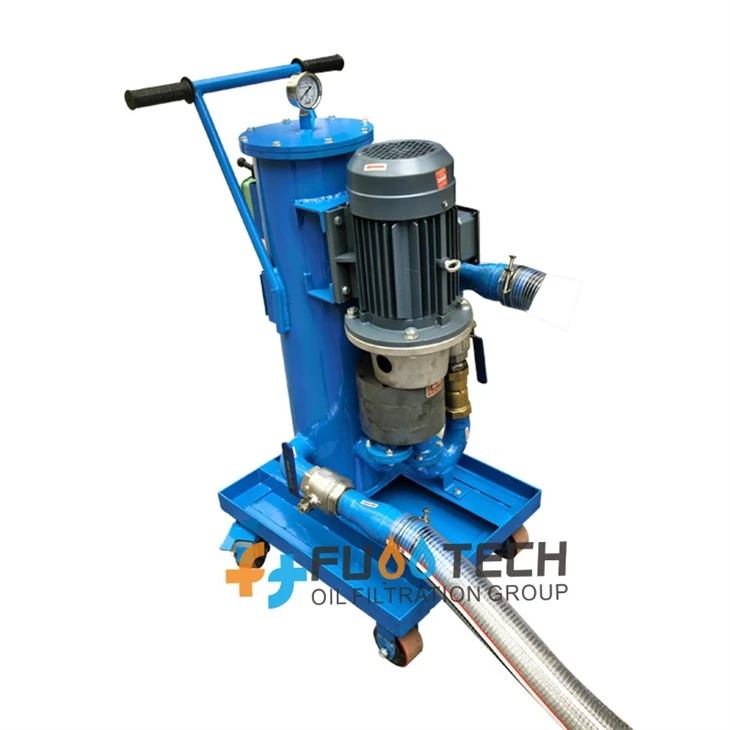

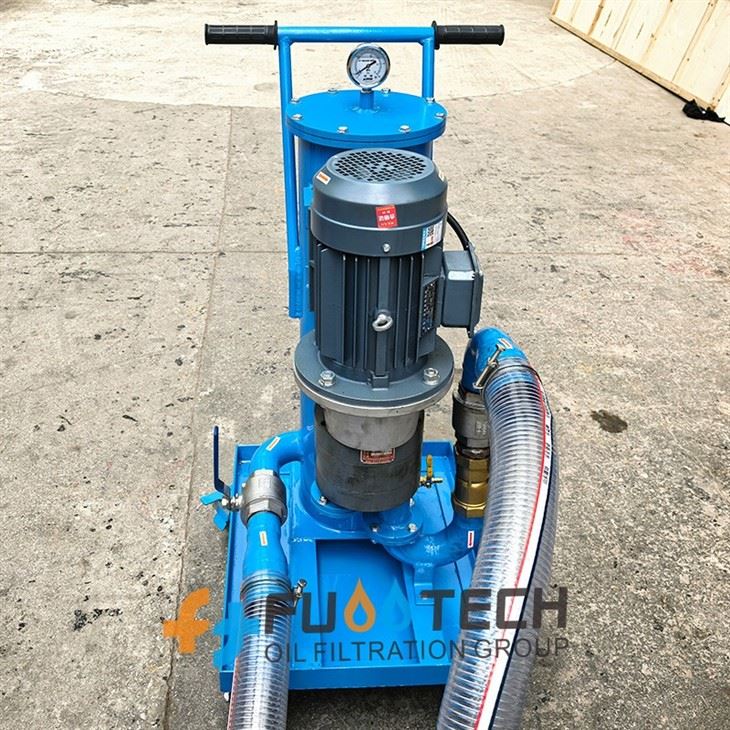

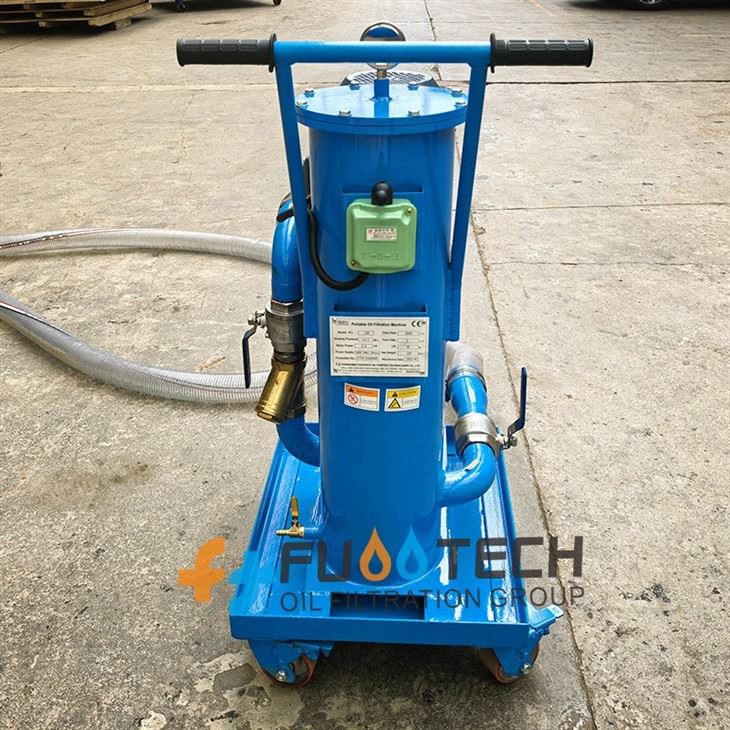

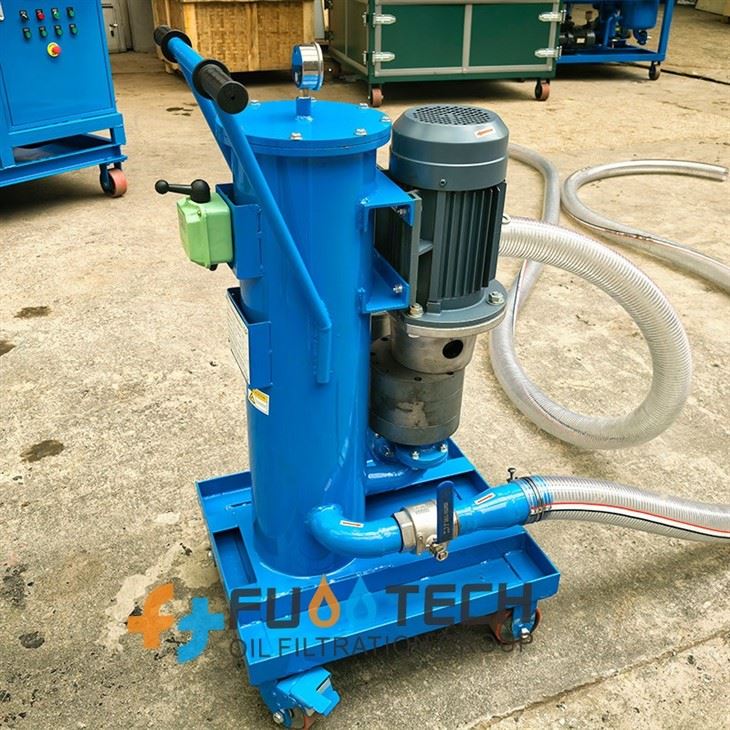

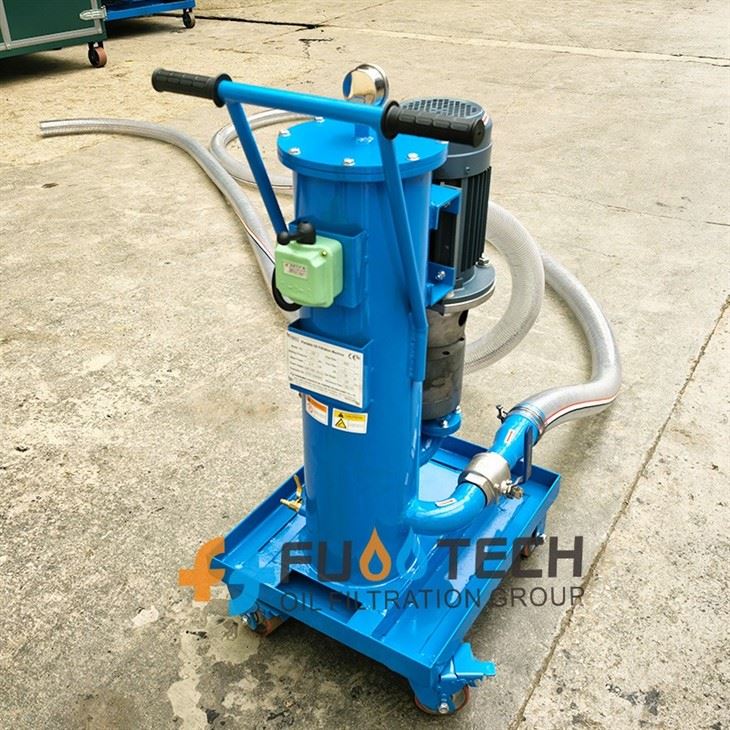

PO Portable Fuel Polishing Systems consists of motor-driven special gear pump and multi-stage filters for filtering dirty oils by removing various sizes of particles & impurities. Small and flexible size, easy to operate and requires no filter paper and causes no contamination to the ground. It has a wider application than ordinary filter press and has a long lifetime, being a new substitute for frame filter press.
This portable oil filtration system also can conveniently filter the oil of venous hydraulic and lubricating systems and aslo can be connected to the system as a bypass filter.
2. Technical Parameters
|
Item |
Unit |
PO-32 |
PO-50 |
PO-100 |
PO-150 |
PO-200 |
PO-300 |
PO-500 |
PO-600 |
||
|
Flow rate |
L/H |
1920 |
3000 |
6000 |
9000 |
12000 |
18000 |
30000 |
36000 |
||
|
Lift |
m |
5 |
8 |
8 |
10 |
15 |
15 |
18 |
20 |
||
|
Cleanness |
NAS |
7 |
6 |
6 |
6 |
6 |
5 |
5 |
5 |
||
|
Power supply |
|
380 VAC, 50 Hz, 3 Phase (or as per required) |
|||||||||
|
Working noise |
DB (A) |
≤ 65 ~ 75 |
|||||||||
|
Motor Power |
KW |
0.75 |
1.1 |
1.5 |
2.5 |
3 |
6 |
9 |
13 |
||
|
Inlet (outlet) caliber |
mm |
Ф25 |
Ф25 |
Ф25 |
Ф32 |
Ф42 |
Ф50 |
Ф50 |
Ф60 |
||
|
Weight |
Kg |
95 |
105 |
120 |
130 |
140 |
160 |
300 |
370 |
||
|
After Filtration |
|
Impurity size: ≤ 3 ~ 5 microns |
|||||||||
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
3. Features
1). Compact structure, small volume, light weight, easy to carry.
2). Internal use filter element to filter, repeated use, save cost, not contaminated sites.
3). Filtration precision, the product specifications can be free to choose according to need.
4). Can be made into explosion-proof type, used at dangerous working area.
5). Hi-Quality & Durable Oil Pump installed with long distance pumping capacity.
6). has large route, strong capability of holding dirt and can be used for a long time.
7). Stable and safe Operation with low noise.
8). Can be designed to include the oil storage tank, heater, trolley, full stainless steel materials, etc.
4. Packing, Delivery, Shipping and Payment
5. Certificates
6. FAQ
Q:Are you a manufacturer or a trading company?
A: Manufacturer with our own factory.
Q: What is the method of payment?
A: Usually, we accept payment by T/T,L/C,western Union,Paypal and Alipay. Other terms of payment depend on the circumstances.
Q: How long will it take you to deliver?
A3:Spot goods will be shipped within 3 days. Large quantities of goods need to be confirmed through negotiation.
Q: Can I buy a few for my initial order?
A: Yes, we can accept trial order before official orders.
