Name: China Customized ZYD-50 50LPM Power Transformer Oil Purifier Suppliers, Manufacturers - Good Price - Fuootech
Brand: Fuootech
SKU: 290131949

Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of ZYD-50 50LPM Power Transformer Oil Purifier in China, also supports customized service with low price. Welcome to wholesale CE approved ZYD-50 50LPM Power Transformer Oil Purifier made in China here from our factory. Also, one year warranty is available.

Products Description

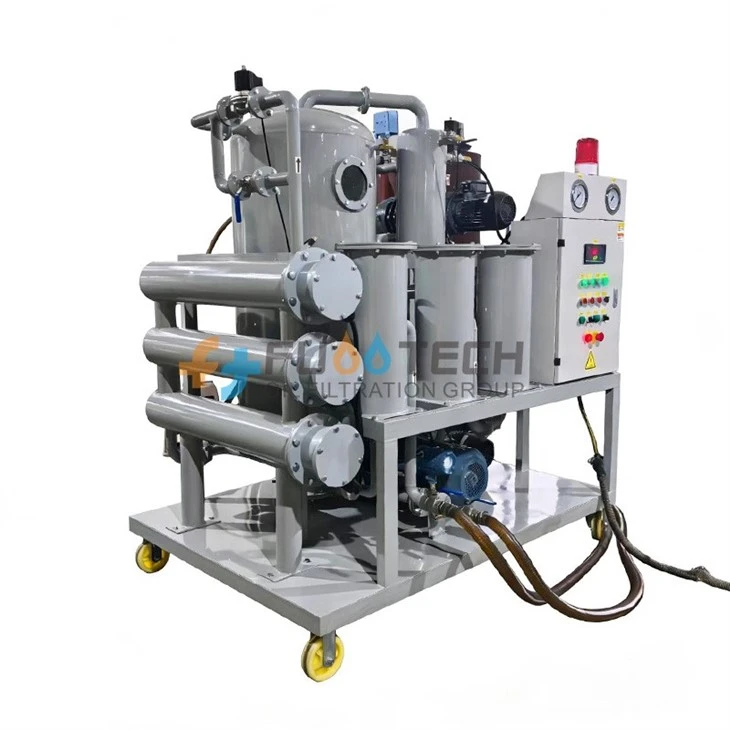

The ZYD-50 50LPM Power Transformer Oil Purifier can quickly remove moisture, gases and impurities can be removed to improve the quality of transformer oil.

ZYD-50 50LPM Power Transformer Oil Purifier is mainly used for for maintenance of power transformer by purifying the oil used in transformer, circuit breakers, mutual inductors, cable and capacitors. It can effectively improve the properties of transformer oil from 11KV to 800KV.

Key Advantages of Our Transformer Oil Purification System

1. Deep Purification and Contaminant Removal
Vacuum transformer oil purifier can remove 99.9% of water, gases, and solid impurities from transformer oil, achieving a cleanliness level of NAS 1638 Class 6 after filtration.
2. Certified Quality Assurance
The entire product line is CE/ISO certified and has a service life of up to 10 years.
3. Flexible Customization Services
We provide full-process OEM/ODM customization for online transformer oil purification plant, adaptable to different oil volumes, contamination levels, and on-site working conditions.
4. Optional Online Operation
The online transformer oil filtration system supports continuous oil treatment while the transformer is under load, eliminating the need for downtime and power outages, significantly reducing maintenance and operational losses.

oil recycling machine

Technical Parameters

Parameters		Model Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate		L/H	1800	3000	6000	9000	12000	15000	18000
Recommended Max. oil volume in one storage tank		Tons	7	12	22	30	42	50	66
Working Vacuum Degree		MPa	-0.08 ～ -0.099
Working Discharge Pressure		MPa	≤ 0.4
Temperature Control Range		℃	20 ～ 100
Operation Temperature		℃	40 ~ 65 (60 ~ 65℃ is best)
Power Supply			380V, 50Hz, 3 phases, 4 wires (or as per your requirements)
Working hours without Trouble		Hour	4000
Continuous Working Hours		Hour	150
Ambient Temperature			-25 ～ 55℃
Working Noise		dB(A)	65 ~ 85
Heating Power (adjusted available)		KW	30	60	90	120	135	150	180
Total Power		KW	33	66	101	135	152	168	208
Inlet/Outlet		mm	φ25	φ32	φ42	φ50	φ50	φ60	φ60
Weight		Kg	850	1160	1350	1500	1680	1800	2000
Dimension	Length	mm	1600	1780	1850	2050	2100	2300	2500
	Width	mm	1150	1260	1350	1430	1550	1660	1750
	Height	mm	1780	1830	1900	1960	2060	2100	2250

Note: The dimension and weight will be changed with changing of technical specs.
FUOOTECH reserves the rights to any upgrading without notification.

vacuum oil filter machine

Oil Performance Before and After Purification

Moisture (Water Content)	≤ 5 PPM
Gas Content	≤0.03% (Vol)
Impurities Degree (Filtration precision)	≤ 1 micron (no free carbon)
Breakdown Voltage (Dielectric Strength)	≥70 ~ 80 KV
Flash Point	≥135℃
Cleanliness	≤NAS 1638 Grade 6

The trusted choice for global customers?

Ⅰ,Serving power companies, transformer manufacturers, and industrial plants in over 50 countries
Ⅱ,24/7 technical support, providing on-site installation and after-sales maintenance services
Ⅲ,Completed over 1000 transformer oil purification projects

Transformer Oil Filtration System Application areas

Thanks to rapid development driven by technological innovation, FUOOTECH transformer oil filtration system are widely used in numerous industries, including power generation, petroleum, chemical engineering, metallurgy, mining, machinery, aviation, shipbuilding, and railways.

After-sales service

Ⅰ,Warranty period: 12 months warranty after shipment.

Ⅱ,Response time: We will respond to inquiries within 1 hour, and repair time will be ≤ 3 business days;

Ⅲ,7-10 days after delivery, our company will follow up with customers to gather feedback on their user experience, promptly identify and resolve potential issues, and ensure optimal performance.
