Name: China Customized ZY-20 Dehydration/Degassing/Remove Impurities Vacuum Transformer Oil Cleaner Suppliers, Manufacturers - Good Price - Fuootech
Brand: Fuootech
SKU: 252334010

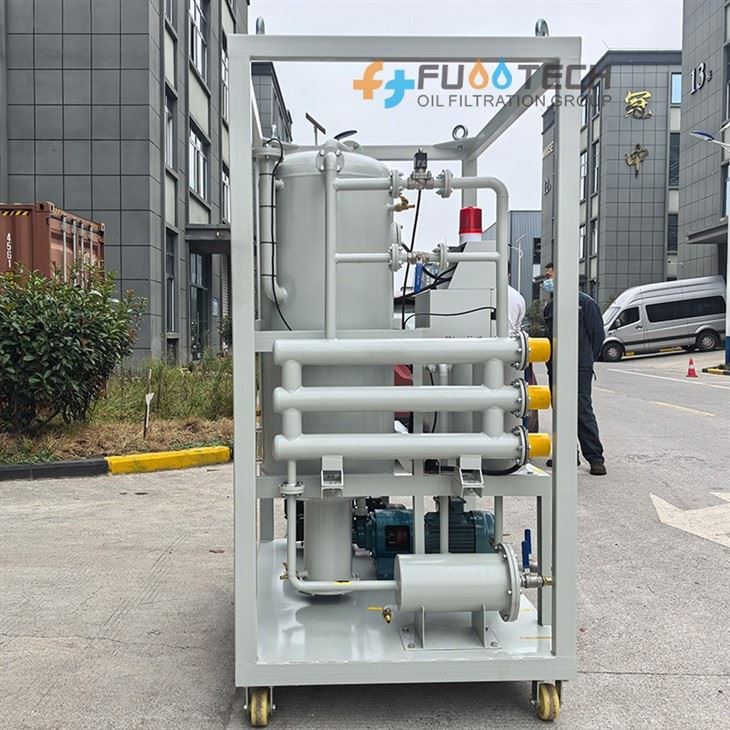

ZY-20 Dehydration/Degassing/Remove Impurities Vacuum Transformer Oil Cleaner

FUOOTECH PLC Transformer Oil Purifier Machine With the use of a transformer oil purifier machine, the service life of transformers can be extended by removing contaminants that can lead to problems such as corrosion of conductors and insulation, arcing and other electrical faults. It can also...

Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of zy-20 dehydration/degassing/remove impurities vacuum transformer oil cleaner in China, also supports customized service with low price. Welcome to wholesale CE approved zy-20 dehydration/degassing/remove impurities vacuum transformer oil cleaner made in China here from our factory. Also, one year warranty is available.

Dehydration/Degassing/Remove Impurities Vacuum Transformer Oil Cleaner

The transformer oil filter machine is equipped with advanced filtration technology that uses high-grade filter elements to effectively remove contaminants such as dirt, dust, water, and other harmful particles. This ensures that the oil meets the required purity standards and is free from any impurities that can cause operational problems for transformers.

Our transformer oil purifier can not only extend the time of insulation, but also improve its dielectric strength.

transformer oil purifier

Transformer oil cleaner is a highly efficient equipment widely used in various industries. Its main function is to filter and treat the insulating oil of the transformer to ensure the normal operation of the transformer and extend its life.

Here are a few commonly used industries:

1. Electric power industry -The electric power industry is the main application area of transformer oil filter. Transformers in the power system need to replace the transformer oil from time to time. The transformer oil filter can effectively filter impurities in the transformer oil and extend the service life of the transformer.

2. Steel industry -The steel industry requires the use of large-scale power generation equipment, and these equipment must use transformer equipment during operation to ensure uninterrupted production. The use of transformer oil purifier can ensure the normal and stable operation of the transformer and greatly improve production efficiency.

3. Chemical industry- Chemical companies often need to adopt deep processing technologies, which require a large amount of power support. Transformer oil filter can ensure stable power, improve production efficiency, and ensure the quality of chemical products.

4. Construction industry- In the construction industry, large-scale mechanical equipment is often required, and these equipment usually use transformers to maintain stable operation of the equipment. Using a transformer oil filter can improve the stability of the equipment, extend the life of the equipment, and improve work efficiency.

Parameters	Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100		ZY-150	ZY-200	ZY-300
Flow rate	L/H	600	1200	1800	3000	6000		9000	12000	18000
Working vacuum	MPa	-0.06 ～ -0.095
Working pressure	MPa	≤0.4				≤0.5
Working without Trouble	H	≥4000
Continuous Working	H	≥150
Temperature range	℃	20 ～ 80
Power supply		380V, 3 phase, 50 Hz (or as per your requirements)
Working noise	dB(A)	≤ 80
Heating power	KW	12	13	15	30	48		60	72	90
Total power	KW	13.5	14.5	16.5	33.5	53		65	76	98
Inlet/outlet caliber	mm	φ25	φ25	φ25	φ32	φ42		φ50	Φ60	φ65
Weight	Kg	230	250	280	300	550		700	950	1200
Size	mm	950× 650× 1050	1100× 700× 1350	1150× 850× 1450	1200× 950× 1580	1600× 1000× 1800		1650× 1100× 1850	1800× 1200× 1900	1900× 1200× 2000
After Filtration (Performance)		Moisture (Water Content)					≤ 8 PPM
		Gas Content					≤0.1% (Vol)
		Impurities Degree (Filtration precision)					≤ 5 micron
		Breakdown Voltage (Dielectric)					≥60 ~ 68 KV
		Cleanliness					≤NAS 1638 Grade 6
