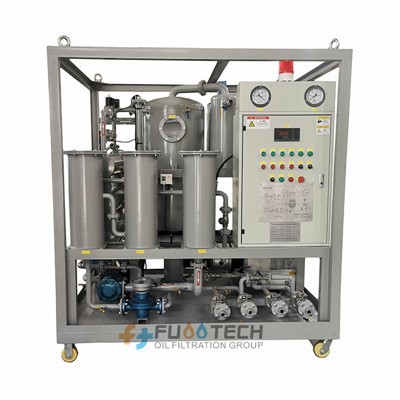

ZYD-T-100 6000LPH Degassing Device Vacuum Oil Purifier Transformer Oil Filter Machine
ZYD-T Series 6000 LPH transformer oil filter machine can remove trace water, free water, soluble water, dissolved gas, impurities and tiny particles as well as acetylene, hydrogen, methane and other harmful ingredients effectively and rapidly from used or new transformer oil, so as to improve the flash point, acidity, interfacial tension and dielectric strength value of insulating oil. It suits for purifying all kinds of insulation oils, especially suits for purifying transformer oil from 110KV and above UHV power transmission and distribution projects; also suits for purifying of capacitor oil, mutual inductor oil, switch oil, cable oil.
The main difference between ZYD-T series and other transformer oil filtration plants, it has the special T-shape Horizontal Vacuum Chamber which separates the evaporation tank and the oil tank, improving evaporation efficiency, prolong the machine lifetime.
Basic Information of 6000 LPH Transformer Oil Filter Machine
- Flow Rate: 6000LPH
- Double Stage Vacuum Dehydration
- Double Stage Vacuum Degassing
- Three Stage Filter to 1micron
- Fully Automatic PLC System & Touch Screen
- Working Vacuum: -0.085 ~ -0.099MPa
- Ultimate vacuum: less than 10Pa
- Working Pressure: less than 0.4MPa
- Dimension (L*W*H): 1850 * 1780* 1780mm
- Net Weight: 1350KGS
- Heater Power: 90KW
- Total Power: 101KW
- Power Supply: 220V/240V/380V/400V/415V/440V/480/, 50/60Hz, 3Phase (or as per request)
Technical Parameters
|
Parameters |
Model Unit |
ZYD-T-30 | ZYD-T-50 | ZYD-T-100 | ZYD-T-150 | ZYD-T-200 | ZYD-T-250 | ZYD-T-300 | |
|
Flow Rate |
L/H | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 | |
|
Recommended Max. oil volume in one storage tank |
Tons | 7 | 12 | 22 | 30 | 42 | 50 | 66 | |
|
Working Vacuum Degree |
MPa | -0.08 ～ -0.099 | |||||||
|
Working Discharge Pressure |
MPa | ≤ 0.4 | |||||||
|
Temperature Control Range |
℃ | 20 ～ 100 | |||||||
|
Operation Temperature |
℃ | 40 ~ 65 (60 ~ 65℃ is best) | |||||||
|
Power Supply |
380V, 50Hz, 3 phases, 4 wires (or as per your requirements) | ||||||||
|
Working hours without Trouble |
Hour | 4000 | |||||||
|
Continuous Working Hours |
Hour | 150 | |||||||
|
Ambient Temperature |
-25 ～ 55℃ | ||||||||
|
Working Noise |
dB(A) | 65 ~ 85 | |||||||
|
Heating Power (adjusted available) |
KW | 30 | 60 | 90 | 120 | 135 | 150 | 180 | |
|
Total Power |
KW | 33 | 66 | 101 | 135 | 152 | 168 | 208 | |
|
Inlet/Outlet |
mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 | |
|
Weight |
Kg | 850 | 1160 | 1350 | 1500 | 1680 | 1800 | 2000 | |
|
Dimension |
Length |
mm |
1600 |
1780 |
1850 |
2050 |
2100 |
2300 |
2500 |
| Width | mm | 1150 | 1260 | 1350 | 1430 | 1550 | 1660 | 1750 | |
| Height | mm | 1780 | 1830 | 1900 | 1960 | 2060 | 2100 | 2250 | |
Note: The dimension and weight will be changed with changing of technical specs.
FUOOTECH reserves the rights to any upgrading without notification.
Oil Performance Before and After Purification
|
Moisture (Water Content) |
≤ 5 PPM |
|
Gas Content |
≤0.03% (Vol) |
|
Impurities Degree (Filtration precision) |
≤ 1 micron (no free carbon) |
|
Breakdown Voltage (Dielectric Strength) |
≥70 ~ 80 KV |
|
Flash Point |
≥135℃ |
|
Cleanliness |
≤NAS 1638 Grade 6 |
Special Features & Advantages
-
Double-stage high vacuum improve the effect and efficiency of oil dehydration and degasification.
-
Multi-stage filtration ensures the high oil filtering accuracy.
-
Multifunctional integrated equipment, can be used oil treatment, vacuum oil filling and vacuum drying. (*More functions can be customized according to your requirements.)
-
The uniquely designed "T" vacuum chamber enlarges the oil evaporation area more than the traditional design, so as to achieve a better dehydration and degassing effect.
-
6000 LPH transformer oil filter machine can work off line or online under the safe operation after a special design.
-
A standalone oil regeneration device can be mounted or connected on its basis for transformer oil regeneration.
-
Online oil measuring kits (mainly including to monitor oil's ppm, particle counter, flow rate, temperature, etc. ), trailer type with road-worthy wheels, weather-proof enclosure and other spare parts are available for selection.
On-site Project
Packing, Delivery, Shipping and Payment
Accessories
|
Items No. |
Name |
Quantity |
|
1 |
ZYD-T-100 oil dehydration plant |
1 Set |
|
2 |
PVC Oil Hoses for oil inlet and outlet completed with necessary parts |
20 meter |
|
3 |
Repairing & maintenance tools |
1 Set |
|
4 |
Sealing & gasket |
1 Set |
|
5 |
Liquid level sensor |
1 Pcs |
|
6 |
Operation & maintenance manuals |
1 Copy |
