1. Introduction and Application

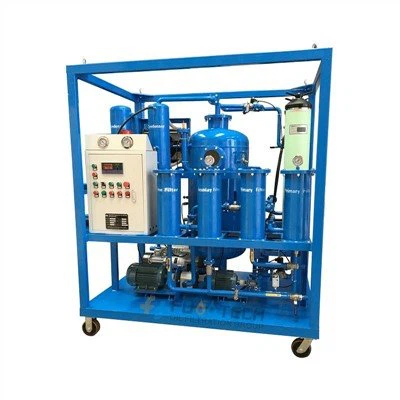

FUOOTECH’s FTY-EX Series Explosion Proof Vacuum Turbine Oil Dehydration Purifier takes explosion proof type electrical control system, explosion proof type motors, explosion proof type heater elements which can guarantee the system to work safely in some dangerous (inflammable or explosive) places. The explosion proof classes are Exd BT4 and ExdCT4 respectively.
This explosion-proof turbine oil purification plant is widely used for online filtering turbine lubricating oil from steam turbine, water turbine, gas turbine and steam turbine generator set, etc. in fields of electric power, metallurgical, chemical engineering industries.
It is good at quickly and completely emulsion breaking, dehydration and removing soap, gelatin, acid, pigment and metal particulates in emulsified turbine oil and low-viscosity lubricating oils so as to make the emulsified oil clear and transparent, improve the quality of the oil, restore the performance of the oil, ensure the normal operation of the generator set adjustment and lubrication system, and extend the maintenance cycle of the generator set.
2. Factors Affecting the Deterioration of Turbine Oil
1). Water vapor or water entering the oil system.
2). The oil temperature is locally too high.
3). Metal particles or dust are mixed into the oil.
4). Mixed with other chemical components.
5). Contact with harmful gases (corrosive gases such as chlorine, sulfur dioxide, ammonia, etc.)
During the use of turbine oil, water vapor and water will inevitably leak into the turbine oil from the shaft seal or other parts, emulsify the oil to form an emulsion, oil and water are not easy to separate resulted in decreasing the oil’s lubricant capability. And the generated acidic substances, salts, and oxides greatly affect the performance characteristics of the turbine oil.
The service life of normal turbine oil is about 1 year, but after processed by our turbine oil dehydration plant, it can be extended to 5 ~ 15 years.
3. Technical Parameters
Item | Unit | FTY-EX-10 | FTY-EX-20 | FTY-EX-30 | FTY-EX-50 | FTY-EX-100 | FTY-EX-150 | FTY-EX-200 | FTY-EX-300 |
Flow rate | L/hr | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 |
Working Vacuum Degree | MPa | -0.06 ～ -0.095 | |||||||
Working Pressure | MPa | ≤ 0.3 | |||||||
Temperature Range | ℃ | 20 ～ 80 | |||||||
Power Supply | 380 VAC, 3 Phase, 50 Hz (or as per requirement) | ||||||||
Heating power | kW | 12 | 15 | 24 | 30 | 45 | 60 | 72 | 84 |
Total power | kW | 14 | 17 | 26 | 33 | 48 | 66 | 81 | 97 |
Inlet/outlet caliber | mm | Ф25 | Ф25 | Ф25 | Ф32 | Ф42 | Ф42 | Ф50 | Ф65 |
Weight | kg | 400 | 450 | 500 | 600 | 700 | 900 | 1200 | 1550 |
Dimension | mm | 1280 ×750 ×1450 | 1350 ×900 ×1450 | 1350 ×950 ×1500 | 1400 ×950 ×1600 | 1500 ×1000 ×1650 | 1500 ×1200 ×1800 | 1750 ×1450 ×1950 | 1950 ×1630 ×2090 |
Oil Result after Purification | Water Content ≤ 80 PPM | ||||||||
Air/Gas Content ≤0.1% | |||||||||
Filtering Precision ≤ 3 micron | |||||||||
Demulsification Value ≤12 min (GB/F 7305) | |||||||||
Cleanliness ≤NAS 1638 Grade 5 | |||||||||
Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements.
4. Features
1). Breaking emulsification thoroughly with high- molecule polymeric material, the value of breaking emulsification ≤15min (GB/F 7305).
2). Dewatering effectively with once and for two steps dehydrating method. It can thoroughly clear away the liquid water, free water and 99.9% dissolved water.
3). With distinctive removing impurities technique filtering through double FH trapezoidal network and absorbing by high polymer material, this machine can make the ß3 equal or surpass 200 and make the cleanness lower grade 6(NAS1638).
4). New type of electric heating system with high efficiency, low heating load, uniform heating, low energy consumption.
5). With the reliable dielectric condensation devices.
6. On-line oil purification can be carried out with turbine or water turbine automatically without any person.
5. On Site Project
6. Packing, Delivery, Shipping and Payment
7. Certificates
8. FAQ
1). How can I choose a suitable one?
Answer: please list us your detailed requirements via mail or online, we will recommend the suitable one for your request.
2). Is your price competitive?
Answer: Yes, we are the manufacturer of this explosion-proof type turbine oil purification machine, therefore you will receive the factory direct sale price with best quality.
3). What is your delivery time?
Answer: all standard models can be delivered with 15 days, please contact us to confirm the shipping time to your address.
4). How to pack the machine? Will the package be easily broken?
Answer: We pack all the oil purifier machines in exportation seaworthy plywood case, it is not easy to be broken.
5). How can get training how to use this turbine oil cleaning machine?
Answer: operation and maintenance manual will be sent to you along with the goods, online support, video support, and on-site commionsioning & and training are also available to provide. So no worry.
FUOOTECH professionally provide customers Explosion-proof type Vacuum Turbine Oil Purifier, Transformer oil filtration machine, lube oil purifier system, oil testers wordwide since 2002, all our products have passed ISO 9001, CE, and other international certificates.
Welcome to contact us for any inquiry about our steam turbine oil filter machine.
