1. Introduction & Application

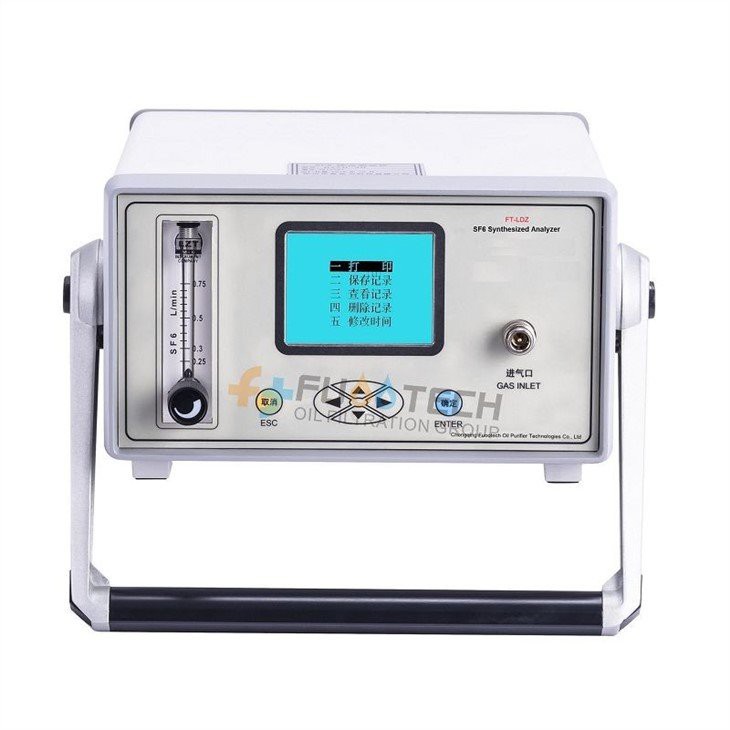

FT-LDZ Portable SF6 Purity, Decomposition and Dew Point Tester integrates SF6 micro- water detector, SF6 purity tester, and SF6 decomposition analyzer as one. One time field measurement can complete the three detections, greatly save the gas in the device, which can save 2/3 of gas usage, while reduce the user's workload and improve work efficiency.
Comprehensive Sf6 Gas Analyzer can test dew point, micro-water content(ppm), SF6 purity, concentration of SO2, H2S, CO(optional) and HF(optional).
This SF6 gas multifunctional test set enjoys the excellent capabilities because it fully adopts the best foreign sensor, the thermal conductivity sensor with temperature compensation for purity are the imported products. It adopts the LCD display with real-time display of all parameters. It enjoys the overall fool-operation and large storage of information. It has chargable batteries inside for either alternating or direct current.
2. Technical Parameters
|
Product Name |
FT-LDZ Portable SF6 Synthesized Tester |
|
Purity |
Measuring range：0%～100% |
|
Accuracy：±0.5% |
|
|
Measuring time：< 2min |
|
|
Dew point |
Measuring range：－80℃～+20℃ |
|
Accuracy：±0.5℃(－80℃～－60℃) |
|
|
Response time(＋20℃) |
|
|
63% need 5S, 90% need 45S (－60℃～＋20℃) |
|
|
63% need 10S,90% need 240S (+20℃～－60℃) |
|
|
H2S |
Measuring range：0～200ppm |
|
The minimum detectable amount：≤0.1ppm |
|
|
Accuracy：±0.5% |
|
|
Stability：0～200ppm |
|
|
SO2 |
Measuring range：0～200ppm |
|
The minimum detectable amount：≤0.1ppm |
|
|
Accuracy：±0.5% |
|
|
Stability：0～200ppm |
|
|
Repeatability：≤2% |
|
|
HF(optional) |
Measuring range：0～20ppm |
|
The minimum detectable amount：≤0.01ppm |
|
|
Accuracy：±0.5% |
|
|
Stability：0～20ppm |
|
|
Repeatability：≤2% |
|
|
CO(optional) |
Measuring range：0～1000ppm |
|
The minimum detectable amount：≤1ppm |
|
|
Accuracy：±0.5% |
|
|
Stability：0～1000ppm |
|
|
Repeatability：≤2% |
|
|
Temperature |
－40℃～＋60℃ |
|
Humidity |
0～100％RH |
|
Power supply |
AC 220V |
|
Built-in rechargeable battery |
|
|
Battery performance |
Charging time: 20 hours; can work for 10 hours |
|
Weight |
5kg |
|
Dimension |
250×150×300mm3 |
|
Working temperature |
－40℃～＋80℃ |
3. Features & Advantages
1). Fast and save gas: after startup into the measuring state, the measuring time of dew point is about 5min; the measuring time of SF6 purity and SF6 decomposer is about 2min.
2). Self-lock joint: use the self-lock joint imported from German, safe and reliable, without gas leakage.
3). Data storage: high capacity, can store 200 groups test results at the most.
4). Curve function: Large-screen curve display the process of dewpoint measurement
5). Clearly display: the dew point, micro-water (ppm), SF6 purity, SO2, H2S, CO and HF content, and temperature, humidity, time and date, etc, are displayed by LCD.
6). Built-in power supply: built-in 4Ah chargeable lithium battery, filled one time, can work for 10 hours.
4. Product Stocks Display
5. Packing, Delivery, Shipping and Payment
6. Certificates
7. Accessories
|
Serial Number |
Name |
Amount |
|
1 |
Mainframe |
1 |
|
2 |
Battery |
2 |
|
3 |
Probe |
2 |
|
4 |
Specification |
1 |
|
5 |
Inspection Report |
1 |
|
6 |
Certification |
1 |
