1. Introduction & Application
In electrical power system, railway system, large petrochemical factories, mines, cement, enterprises have a lot of electrical equipment, its internal insulation are mostly oil-filled insulation type, dielectric strength testing of the insulating oil is commonly required as a routine test job to check the insulating oil's quality.

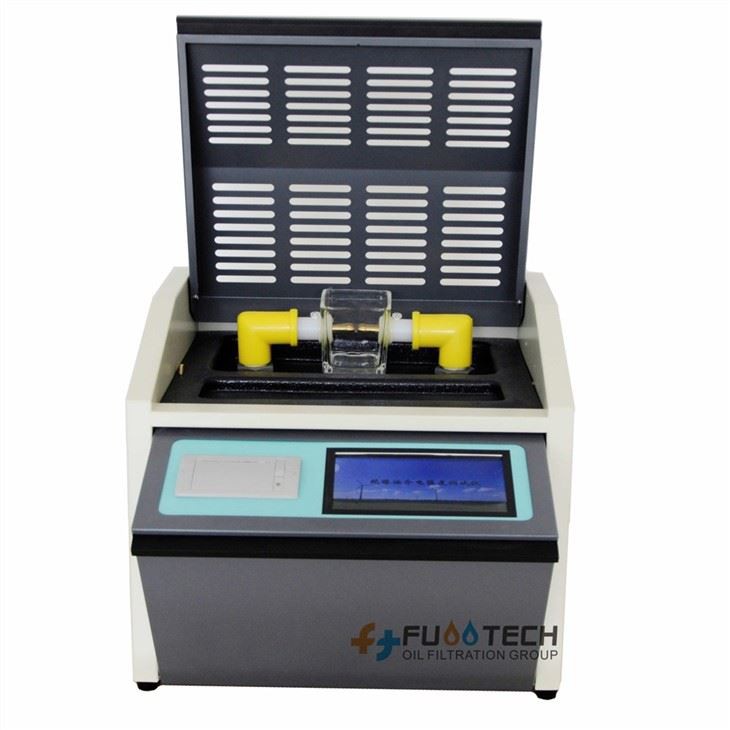

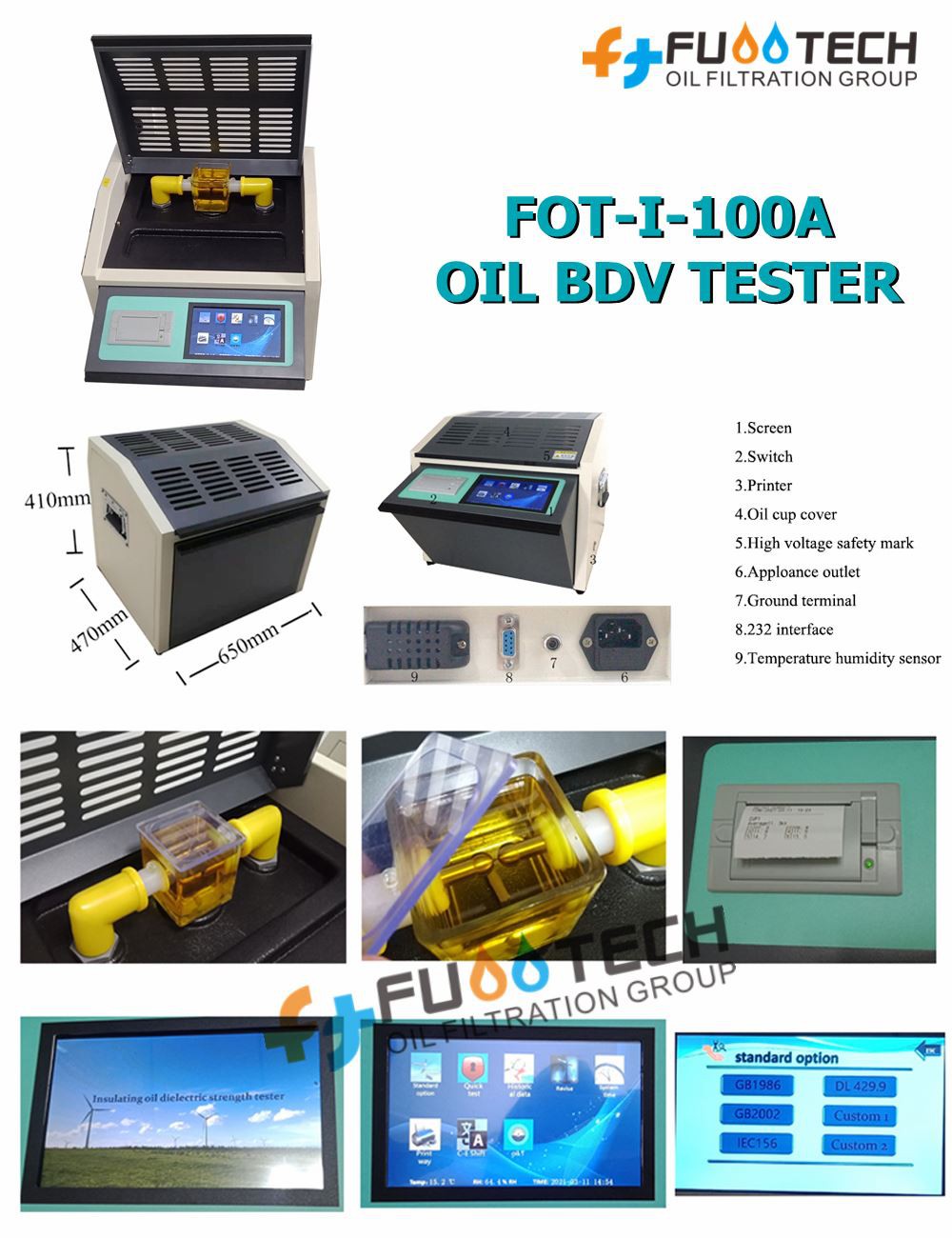

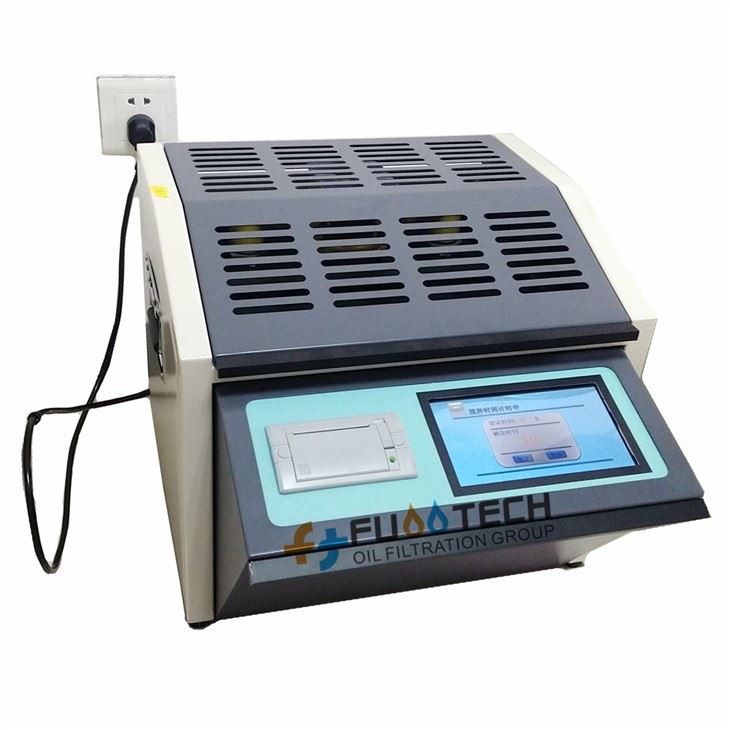

FOT-I-100A for 0 ~ 100kV Fully Automatic Liquid Dielectric Test Set (Touch screen control type) conforms to international standard IEC-156 and national standard GB507-86, typically used for testing the voltage breakdown level of insulating oils.
This BDV Oil Test kit is equipped with large-size touch screen and all settings are conducted through the touch screen, easy to operate.
2. Technical Parameters
|
Technical Specs |
Booster capacity |
1.5 kVA |
|
Boost speed |
0.5kV/s-5.0kV/s (Increment every 0.5), 10 gears optional |
|
|
Error |
0.2 kV/s |
|
|
Output voltage |
0 ~ 100 kV |
|
|
Voltage accuracy |
±(2% reading + 2 words) |
|
|
Power supply distortion rate |
< 1% |
|
|
Electrode gap |
standard 2.5mm |
|
|
Test times |
6 times (1-9 times optional) |
|
|
Resting time |
900S (0-9000 S optional) |
|
|
Interval static time |
300S (0-900 S optional) |
|
|
Stirring time |
15S (0-250S optional) |
|
|
Working Condition |
Environmental temperature |
0 ~ 40℃ |
|
Relative humidity |
≤85% | |
|
Working power |
AC 220V(1 ± 10%) | |
|
Power frequency |
50 Hz (1 ± 10%) |
|
|
Power consumption |
< 200w |
|
|
Weight and Dimension |
Overall dimension |
650mm×470 mm×410 mm |
|
Weight |
42 kg |
3. Special Features & Advantages
1) Large-size colorful Touch Screen Control;
2) Fully automatic testing procedures;
3) Fast testing and printing (Inbuild Thermal printer );
4) Small size and light weight;
5) Complete protection functions protecting tester and operator;
6) F type plug and adapter can be supplied according to client's request;
7) Complete with power supply and carrying bag for accessories;
8) With RS232 or USB as optional.
9) Calibration certificate issued by factory or 3rd party are available.
4. On-site Project
5. Packing, Delivery, Shipping and Payment
6. Certificates
7. Accessories
|
Items No. |
Name |
Quantity |
|
1 |
FOT-I-100A Tester |
1 Pcs |
|
2 |
Oil Cup |
1 Pcs |
|
3 |
Standard gauge |
1 Pcs |
|
4 |
Stirring paddles |
2 Pcs |
|
5 |
Tweezers |
1 Pcs |
|
6 |
Power cord |
1 Pcs |
|
7 |
Fuse (3A) |
2 Pcs |
|
8 |
Printing paper |
2 Rolls |
|
9 |
Ground wire |
1 Pcs |
|
10 |
Factory Calibration Certificate |
1 Set |
|
11 |
Operation & Maintenance Manual: |
1 Set |
FUOOTECH Group is the experienced manufacturer and exporter of Transformer Oil Tesing Machines such as BDV Tester, Moisture Content Tester, Acidity Tester, Interfacial Tension Tester, Viscosity Tester, Density Tester, DGA dissolved gas analyzer, etc. Since 2002.
