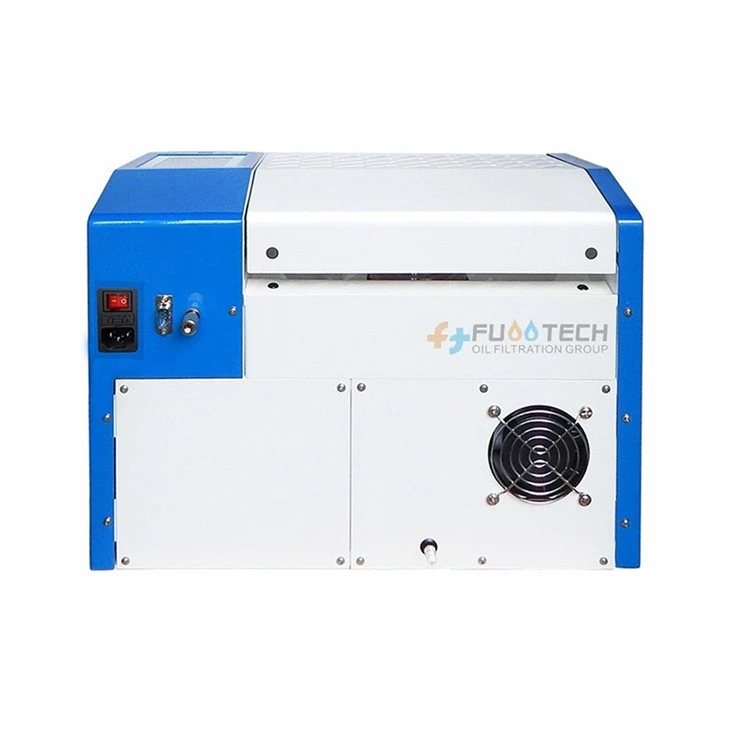

Insulating Oil Dielectric Loss and Resistivity Tester
The insulating oil dielectric loss and resistivity tester is a precision instrument capable of measuring the dielectric loss and resistivity of insulating oil. It can calculate the dielectric loss and resistivity of insulating oil by measuring voltage and current. At the same time, the insulating oil dielectric loss and resistivity tester can also ensure the accuracy and reliability of test results through advanced technologies such as internal automatic calibration and automatic calculation.
Insulating oil dielectric loss and resistivity testers are widely used in the production, maintenance and testing of power equipment. It can not only help decision makers more accurately evaluate the performance and quality of insulating oil, but also help engineers quickly detect whether equipment has problems such as aging of insulating oil, providing an important reference for equipment maintenance and repair.
|
Voltage supply |
AC 220V±10% |
|
Power frequency |
50Hz/60Hz ±1% |
|
Measuring range |
|
|
Capacitance |
5pF~200pF |
|
Relative Permittivity |
1.000~30.000 |
|
Dielectric loss factor |
0.00001~100 |
|
DC Resistivity |
2.5MΩm~20TΩm |
|
Measuring accuracy |
|
|
Capacitance |
± (1% of reading+0.5pF) |
|
Relative Permittivity |
±(1~10)% of reading |
|
Dielectric dissipation factor |
± (1% of reading+0.0001) |
|
DC Resistivity |
±10% of reading |
|
Resolution |
|
|
Capacitance |
0.01pF |
|
Relative permittivity |
0.001 |
|
Dielectric dissipation factor |
0.00001 |
|
Measured temperature range |
0~120℃ |
|
Temperature measurement error |
±0.5℃ |
|
AC Test Voltage |
500~2200V Continuously adjustable, frequency: 50Hz |
|
DC Test Voltage |
300~500V Continuously adjustable |
|
Power consumption |
100W |
|
Ambient temperature |
0℃~40℃ |
|
Relative humidity(RH) |
<75% |
|
Dimensions |
500mm × 360mm × 420mm |
|
Total weight |
22KG |
