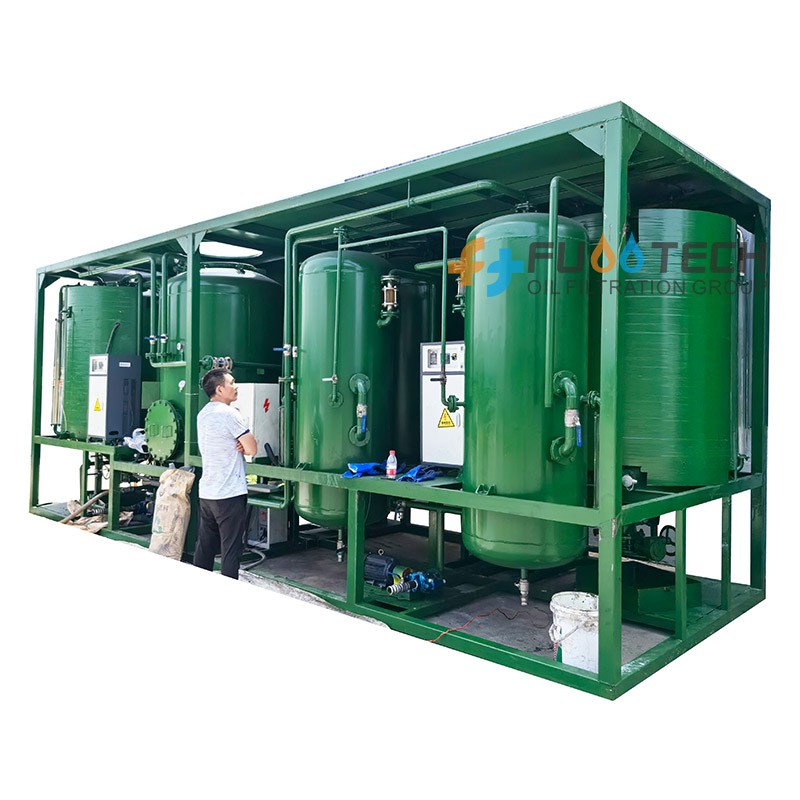

FT-ZTS Waste Oil Purification And Regeneration Machine

FT-ZTS Series Multi-function Industrial Waste Oil Purification and Regeneration Machine adopts the world's most advanced pure physical low-temperature micro-filter purification technology, under different temperature conditions, the molecular chain of different oil products, the oil film wrapped oxide refractory (common oil purifier can not filter out) impurities are fully broken.

Send Inquiry

Products Description

Adopting such special physical flocculation and bridging effects, this equipment can quickly separate water, oxides, metal impurities, carbon residues, colloids, suspended substances, emulsifiers and other pollutants in the waste oil, and completely restore the physical and chemical indexes such as viscosity, acid value and flash point of the oil.

Oil Purification machine1

Technical Parameters

Items		FT-ZTS-1	FT-ZTS-2	FT-ZTS-3	FT-ZTS-4	FT-ZTS-5
Single Oil Treatment Capacity	Tons/batch	1	2	3	4	5
Oil Inlet Flow	Liters/min	40	70	83.3	100	110
Power Consumption	KW	36	48	54	70	90
Power Suppy		380V, 50Hz, 3Phase (or as per request)
Working oil's temperature	℃	30～100
Working pressure	MPa	Normal pressure
Noise	dB(A)	≤ 75

Note: The dimension and weight will be changed with changing of technical specs.

FUOOTECH reserves the rights to any upgrading without notification.

Internal mixer oil filtration

Main Features:

1.Electromagnetic Coil Heating System

①The most advanced heating technology, never oxidize or break;

②720 degree heating without any blind spots, the oil molecules are evenly heated and not easily damaged. No bearings, no failure;

③This completely avoids the increased repair and replacement costs caused by the common heating tube being burned out due to metal chips and other fine impurities adhering to the heating tube.

2.Pure Physical Flocculation Treatment

Technology Quickly separate water, oxides, metal impurities, carbon residues, colloids, suspended substances, emulsifiers and other pollutants in the waste oil, and completely restore the physical and chemical indexes such as viscosity, acid value and flash point of the oil.

3.Unique Thin Film Evaporatory
①dopts the Thin Film Evaporator using full-bridge rectification technology to quickly and effectively separate moisture and light components.
②The evaporation area is large, dozens of times that of the evaporation tower on the market, more efficient.

4.No Additional Solid Hazardous Waste
Besides the existing wastes in the oil, no additional solid hazardous waste is generated, thus reducing the cost of hazardous waste disposal.

5.Low Maintenancey

①ow maintenance time and cost

②Easy to operate ③Various capacity can be customized.

Industries Served

Petroleum, Chemicals, Cement, Metallurgy, Mining, Power Industry, Shipbuilding, Machinery, Rubber and Plastics, Instrumentation, Transportation, Building Materials, Paper Making and etc...

Working Flow
