Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of cooking oil recycling machine in China, also supports customized service with low price. Welcome to wholesale CE approved cooking oil recycling machine made in China here from our factory. Also, one year warranty is available.
Cooking Oil Recycling Machine

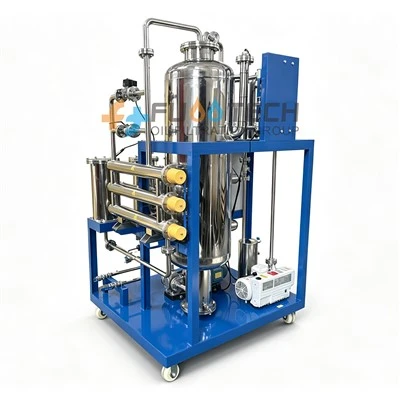

The COP-E Cooking Oil Recycling Machine is crafted entirely from high-quality 304 stainless steel, ensuring food-grade safety and durability. It is specially designed to purify various types of cooking oils, including UCO (Used Cooking Oil), vegetable oil, KFC oil, edible oils such as rape, sesame, peanut, coconut, and bean oils, as well as kitchen oil, bio-diesel oil, plant oil, and wood oil. This advanced machine effectively restores the quality of used cooking oils by removing water, impurities, and carbon residues, helping to extend the life of the oil and promote sustainable oil reuse. With its reliable performance and food-safe materials, the COP-E Cooking Oil Recycling Machine offers an efficient and environmentally friendly solution for oil purification.
Stainless steel machine body and carbon steel machine body are the options.
Oil Result Before and After Treatment:
|
Moisture (water content) |
≤80 PPM (remove 100% of free water and 99%of dissolved/emulsified water) |
|
Gas Content |
≤0.01% |
|
Suspended Particles (Filtration precision) |
≤ 5 micron |
|
Demulsification |
New oil≤15min, running oil≤30min |
|
Cleanliness |
≤NAS 1638-Grade 5 |
|
Item |
Unit |
COP-E-10 |
COP-E-20 |
COP-E-30 |
COP-E-50 |
COP-E-100 |
COP-E-150 |
COP-E-200 |
COP-E-300 |
|
Flow rate |
L/H |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|
Vacuum degree |
Mpa |
-0.06 ~ - 0.095 |
|||||||
|
Working pressure |
Mpa |
≤0.4 |
|||||||
|
|
℃ |
0 ~ 100 |
|||||||
|
Operation Temperature |
℃ |
50 ~ 70 |
|||||||
|
Demulsification |
Min |
New oil≤15min, running oil≤30min |
|||||||
|
Power supply |
|
380 VAC, 50 Hz, 3 Phase (or as per required) |
|||||||
|
Working noise |
DB (A) |
≤ 65 ~ 90 |
|||||||
|
Electric heating power |
KW |
30 |
36 |
48 |
60 |
72 |
90 |
120 |
135 |
|
Total electric power |
KW |
32.5 |
39 |
51 |
69 |
80 |
96 |
134 |
147 |
|
Inlet (outlet) caliber |
mm |
Ф25 |
Ф25 |
Ф25 |
Ф32 |
Ф42 |
Ф50 |
Ф50 |
Ф60 |
|
Dimension (L × W × H) |
mm |
1630 x1050 x 1730 |
1700 x1090 x1790 |
1780 x1150 x1850 |
1800 x 1200 x1900 |
1930 x1450 x 1960 |
1940 x1600 x2060 |
1980 x1700 x2100 |
2100 x1760 x2200 |
|
Weight |
Kg |
580 |
660 |
700 |
750 |
850 |
1000 |
1200 |
1500 |
Cooking Oil Recycling Machine Features:
1. Highly effective vacuum dewatering, and impurities removing system.
2. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.
3. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.
4. Hi-automatically operated, convenient, reliable, and safe.
