Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of fully automatic fuel oil purifier in China, also supports customized service with low price. Welcome to wholesale CE approved fully automatic fuel oil purifier made in China here from our factory. Also, one year warranty is available.
Products Description

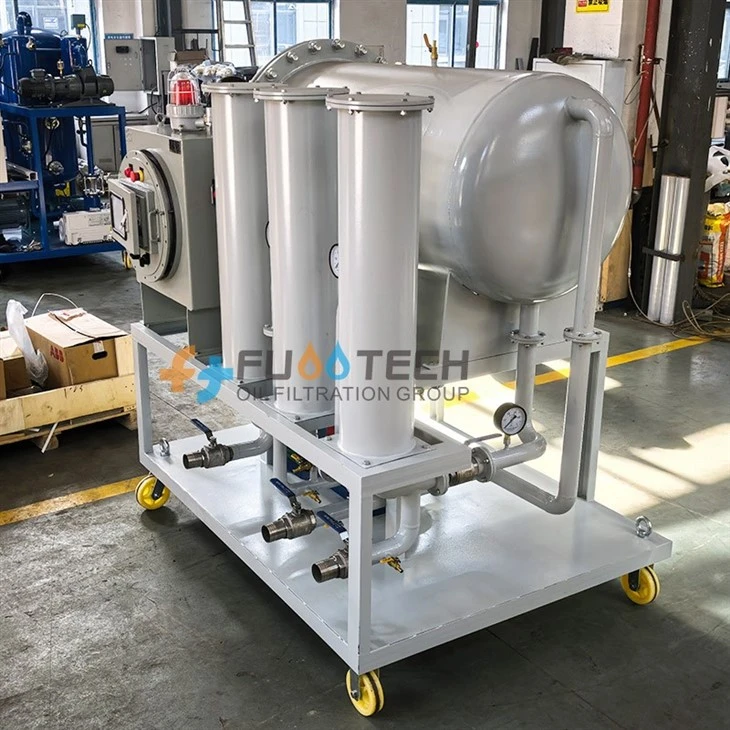

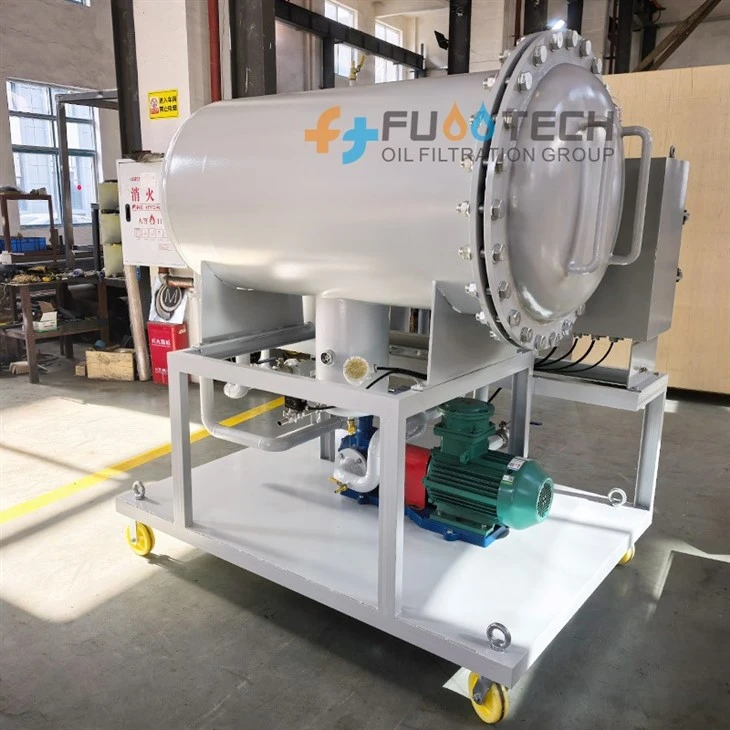

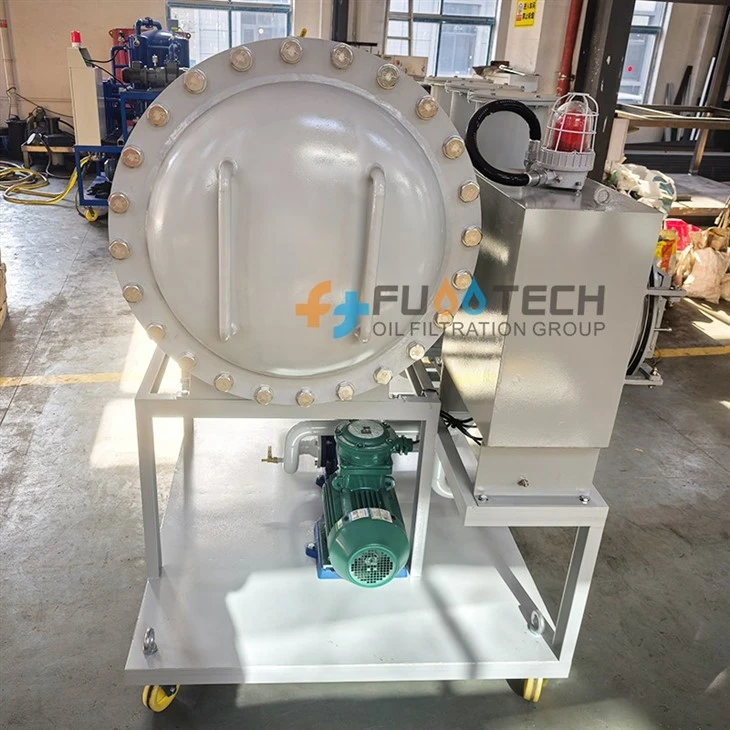

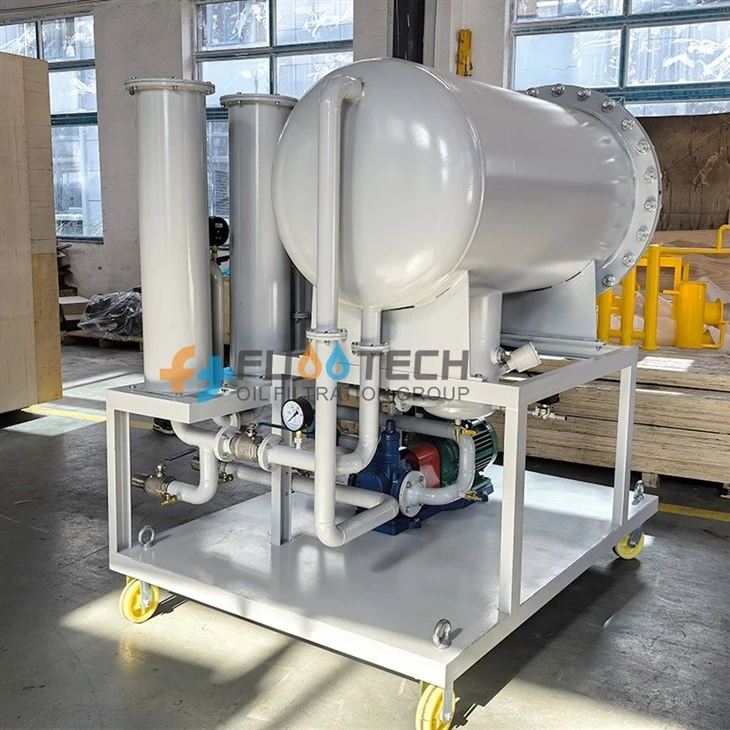

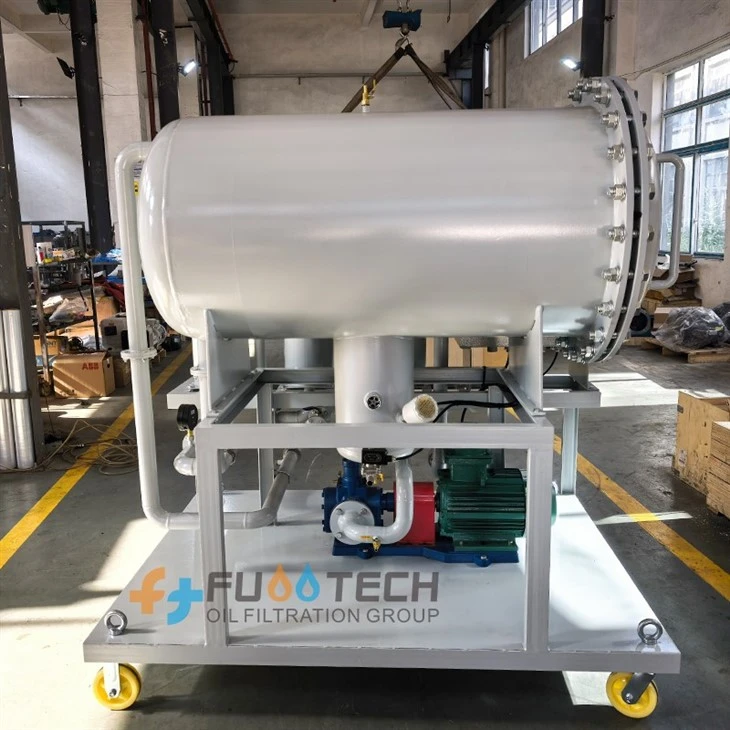

The PCS series fully automatic fuel oil purifier integrates advanced "coalescing-separation" dehydration technology with "precision filtration" technology, effectively removing emulsified water, free water, and particulate impurities from oil. It is widely used for the dehydration and purification of light fuels (such as light diesel, gasoline, and kerosene) with high water content, as well as turbine oil, hydraulic oil, lubricating oil, and low-viscosity, low-flash-point oils.
Application Areas :
1. Purification of turbine oil and transformer oil
2. Water and impurity removal for hydraulic and lubrication system oils
3. Integration into hydraulic and lubrication systems to enhance system cleanliness
4.Light fuels (diesel, gasoline, aviation kerosene, etc.)
.
|
Parameters |
Unit |
PCS-10 |
PCS-20 |
PCS-30 |
PCS-50 |
PCS-80 |
PCS-100 |
PCS-200 |
PCS-300 |
|
Flow rate |
L/min |
600 |
1200 |
1800 |
3000 |
4800 |
6000 |
12000 |
18000 |
|
Working pressure |
MPa |
≤0.3 |
|||||||
|
Working noise |
dB(A) |
≤65-80 |
|||||||
|
Running hours without |
H |
≥4000 |
|||||||
|
Continuous running hours |
H |
≥150 |
|||||||
|
Power Supply |
|
AC 380 V, 50Hz, 3 Phase (or as per client's requirement) |
|||||||
|
Filter Accuracy |
μm |
≤3 |
|||||||
|
Water Content in the oil after Purification |
PPM |
≤100ppm |
|||||||
|
Cleanliness After Purification |
NAS 1638 |
≤6 |
|||||||
|
Power |
KW |
0.75 |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
5.5 |
7.5 |
|
Dimension |
mm |
700 |
700 |
700 |
850 |
900 |
1000 |
1100 |
1200 |
|
Weight |
Kg |
108 |
120 |
130 |
145 |
170 |
185 |
200 |
230 |
How do you determine when it is appropriate to use a fully automatic fuel oil purifier?
I. Oil Viscosity Criteria (Primary Selection Criterion)
1.Coalescence separation is the preferred choice for low-viscosity oils:
2.Fuels (diesel, kerosene, jet fuel, gasoline)
3.Characterized by extremely low viscosity and excellent flow properties; this is the standard solution for pre-supply dehydration at fuel depots, on ships, and for generator sets. It rapidly removes condensation from storage tanks and free water introduced during transport, thereby protecting fuel injectors and high-pressure common-rail systems.
4.Low-viscosity lubricating oils/hydraulic oils: Hydraulic oils (ISO VG 46 or lower), turbine oils (ISO VG 32), machine oils (ISO VG 20), and light transformer oils.
Ⅱ.Forms of water contamination in oil (primary application scenario)
1.Large amounts of free water in the oil; visible oil-water separation.
Ⅲ.Operating Conditions and Application Scenarios
1.Requires processing at ambient temperature; heating of the oil is prohibited.
2.The oil is prone to oxidation and volatilization when heated (e.g., diesel, kerosene, light insulating oil).
3.In environments such as explosion-proof workshops, underground sites, and fuel depots, vacuum heating poses a fire risk; the coalescence process is safer as it operates entirely at ambient temperature.
4.Suitable for low-temperature outdoor operations, enabling effective dehydration without the need for heating.
