Chongqing Fuootech Oil Purifier Technologies Co., Ltd. is one of the most reliable manufacturers and suppliers of dissolved gas analysis transformer oil chromatograph analyzer for 7 & 9 gases in China, also supports customized service with low price. Welcome to wholesale CE approved dissolved gas analysis transformer oil chromatograph analyzer for 7 & 9 gases made in China here from our factory. Also, one year warranty is available.
Content determination of dissolved gases in insulating oil by gas chromatography is set, the power supply enterprise to judge the oil filled power equipment in the operation of the existence of latent heat, discharge fault, in order to ensure the effective operation of the power grid safety, It is also one of the necessary means of testing equipment for oil-filled electrical equipment manufacturers.

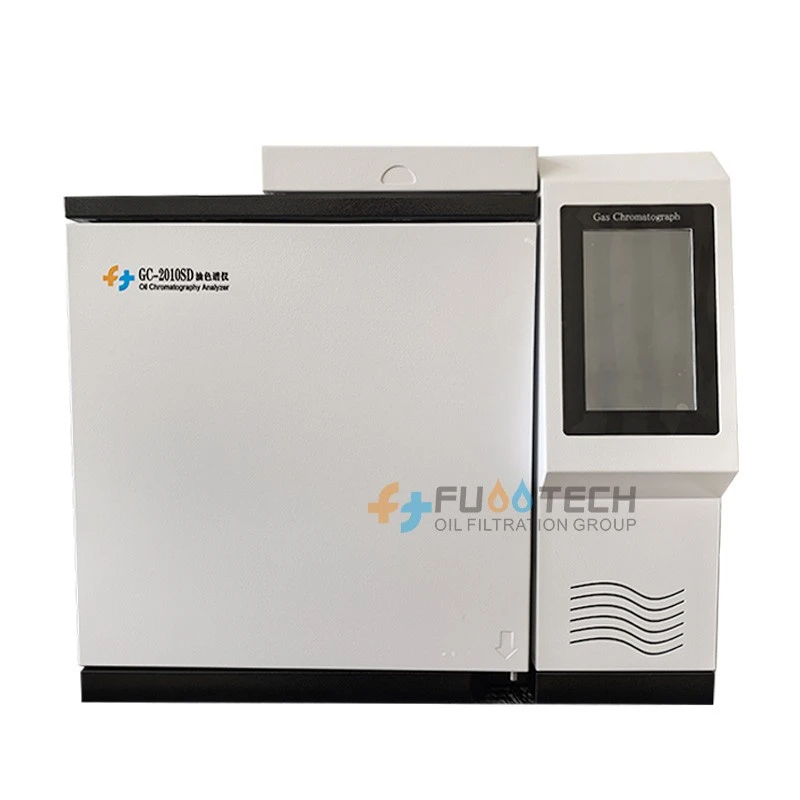

GC-2010SD Transformer Oil Chromatographic Analysis System using three detector process standard recommend, a sampling can complete component of dissolved gas in insulation oil (including hydrogen, oxygen, methane, ethylene, ethane, acetylene, carbon monoxide and carbon dioxide) full content analysis.
GC-2010SD Transformer Oil Chromatograph Tester adopts double-pillar parallel shunt system, equipped with TCD, double FID and methane conversion oven, and could achieve total analysis of 9 gas components (H2, O2, N2, CH4, C2H2, C2H4, C2H6, CO, CO2) of dissolved gas in insulation oil by one time.
Features:
1. Color LCD screendisplay, meets the demands of different users.
2. Equipped with network edition workstation, simultaneously support multiple chromatograph working, with data processing and control, which simplifies the document management, and reduce the lab investment cost and running cost.
3. Standard English Version, applied to any countries in the world.
4. Using a multiprocessor parallel working mode, more stable and reliable. It meets complex sample analysis, FID and TCD detector are supplied. Other detector can be optional if necessary.
5. Modular design, clear and convenient to upgrade system.
6. Touch screen operation system, simple operation, more convenient. Detectors have automatic identification technology. It also has fault diagnosis and power-off data protection function, automatic memory setting parameters.
7. Built-in low noise, high resolution.
8. Suitable for WinXP, Win2000, Win7, Win8, Win10 and other operating systems.
Technical Parameters:
|
Model |
GC-2010SD |
|
Application |
It is used to measure the dissolved gas content in the insulating oil, and can measure the seven components of H2, CO, CO2, CH 4, C2 H4, C2 H6 and C2 H2 in the oil. |
|
Display |
English version LCD touch screen |
|
Temperature Control Area |
8 roads |
|
Temperature control range |
From 4℃ to 450℃, above room temperature |
|
Increment |
1℃ |
|
Temperature Accuracy |
±0.1℃ |
|
Stabilization time |
<30min |
|
Parsing time |
<15min |
|
Power |
2500W |
|
Chromatographic work station |
Power system (with a database and insulation oil diagnosis) |
|
Main function |
1. Using a large LCD screen in English display, monitor six temperature control at the same time 2. reverse control chromatography workstation; 3. When the chromatograph carries gas break or gas leakage, the system will automatically power off. 4. High-temperature automatic protection function of the instrument, (detector, column box) 5. Under sudden power failure or instantaneous interference, the system can automatically save the control parameters, and it will automatically resume normal operation after the interference. 6. The FID detector automatically fires up 7. Start the chromatography workstation analysis with one click 8. Wide range detector, log amplifier |
|
Program heating order |
the 27th order |
|
Range |
0~0.25Mpa (pressure); 0 ~ 1000 mL/min (flow) |
|
Lift rate |
0.1~80℃ / min |
|
The TCD detector sensitivity |
S≥10,000 mVml / mg (benzene / toluene) |
|
baseline drift |
0.1 mv / 30min |
|
Baseline noise |
0.05 mv |
|
The FID detector detection limit |
310 ¯¹2And g / s (n-hexadecane) |
|
baseline drift |
110 ¯¹³A / 30min |
|
Baseline noise |
310 ¯¹⁴ A |
|
Ambient temperature |
0℃~ 35℃ |
|
Power Supply |
220V, 50Hz |
