Whether in the industrial testing fields or in the laboratory, FUOOTECH's analyzers are leaders in portable rapid analysis instruments.We develops,designs and produces the state-of-the-art analytical instruments for gasoline, diesel, motor oil and transformer oil.

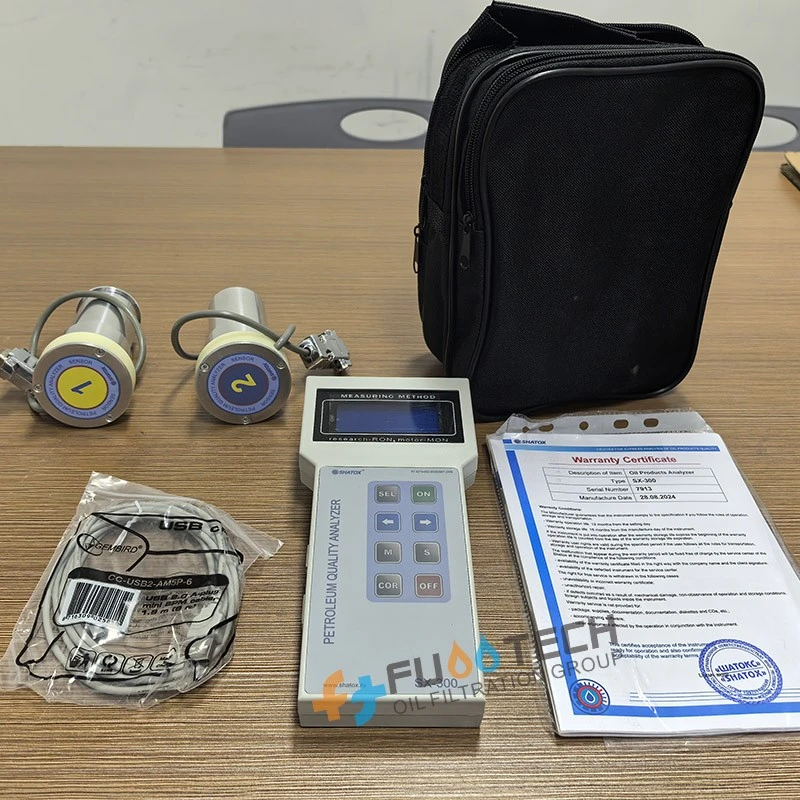

SX-150 Portable Octane and Cetane Analyzers are often used for on-site analysis of octane number of power gasoline, motor gasoline, corresponding to the motor method and research method (RON and MON), as wll as suitable for cetane number analysis of diesel fuels. In addition, the temperature of the analyzed liquid and the freezing point of diesel fuel can also be measured. The measuring results are displayed on the LCD liquid crystal display.
SX-150 Octane and Cetane Tester is widely used all over the world. Its measurement method conforms to international standards:
Octane measurement complies with: ASTM D 2699-86, ASTM D 2700-86.
Diesel cetane measurement complies with: ASTM D 4737- 03, ASTM D 613, EN ISO 5165.
Technical Parameters
|
Item
|
Unit
|
Value
|
|
Gasoline octane number range
|
ON
|
40–135
|
|
Gasoline octane number measurement accuracy
|
ON
|
± 0.5
|
|
Limit of acceptable difference between parallel octane number measurements, max
|
ON
|
± 0.2
|
|
Gasoline stability measurement range
Petrol oxidation breakdown time measurement range |
min.
|
50-2400
|
|
Acceptable limit of gasoline oxidation breakdown time basic error
|
%
|
5
|
|
Acceptable basic error limit of petrol oxidation breakdown time
|
min.
|
10
|
|
Cetane number measurement range
|
CN
|
20–100
|
|
Measurement accuracy of diesel cetane number
|
CN
|
±1.0
|
|
Acceptable difference limit between cetane numbers parallel measurements, max
|
CN
|
±0.5
|
|
Acceptable error limit when determining diesel fuel pour point
|
Co
|
± 5
|
|
Kerosene content determination range in diesel fuels
|
%
|
0-95
|
|
Acceptable basic error limit when determining kerosene content in diesel fuels
|
%
|
3
|
|
Measure time
|
sec.
|
1–5
|
|
Minimum power supply for instrument operation
|
V
|
5.4
|
|
Instrument service life
|
MIN. years
|
6
|
|
Overall dimensions of:
|
|
|
|
Electronic unit
|
mm
|
100х210х40
|
|
Sensor
|
mm
|
60х100
|
|
Instrument weight (including 1 sensor)
|
g
|
850
|
