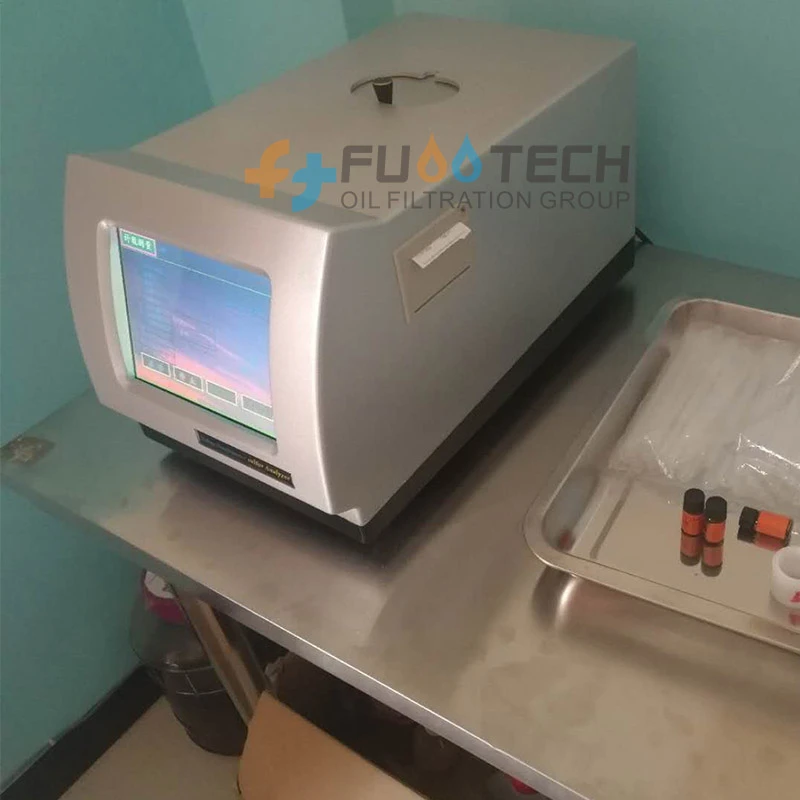

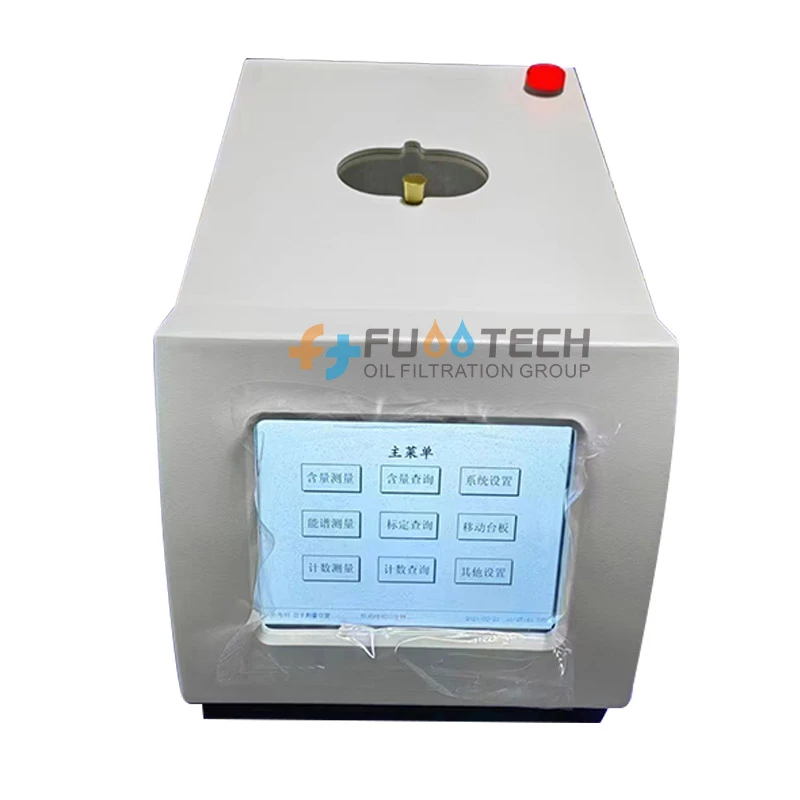

The FTYS-3000 X-ray Fluorescence Sulfur Analyzer produced by our company is a special X-ray fluorescence analyzer developed and manufactured to meet the needs of sulfur content detection in oil products. It adopts the energy dispersion principle, electrical-mechanical-microprocessor integration design, fast analysis speed, and its repeatability and reproducibility meet the testing standards ASTM D4294, GB/T 17040 and GB 11140. It provides an important means for the detection of sulfur content in crude oil or petrochemical production. This analyzer is environmentally friendly and cost effective.
Technical Parameter
|
Measurement range |
7 ppm ~ 5% |
|
Repeatability (r) |
<0.02894 (X+0.1691) |
|
Reproducibility (r) |
<0.1215 (X+0.05555) |
|
Oil sample quantity |
3 ml (equal to sample depth of 3 mm~4 mm); |
|
Measurement time |
30s, 60s, 90s, 120s, 150s, arbitrarily set |
|
Single sample automatic measurement, measurement times |
1, 2, 3, 5, 10 times arbitrarily set, |
|
Calibration curve numbers |
Can store 10 calibration curves |
|
Working condition |
Ambient temperature: 5~40℃; |
|
Power supply |
220V±20V, 50 Hz; |
|
Rated power |
50W |
|
Dimensions |
460mm×260mm ×260mm |
|
Weight |
13 KG |
Application
1. Measure themass% of total sulfur content in crude oil, petroleum, heavy oil, diesel, kerosene, gasoline, naphtha and other oil products.
2. Measure the total sulfur content in coal chemical products, such as primary benzene.
3. Measure the total sulfur or sulfide content in solid fine powder samples, such as anode carbon blocks, petroleum coke,modified asphalt and other carbon materials.
4. Measure the total sulfur or sulfide content in lubricating oil and petroleum additives.
5. Measure the total sulfur or sulfide content in other liquids.
If you are interested in our FTYS-3000 X-ray Fluorescence Sulfur Oil Analyzer , pls contact us for more info.
