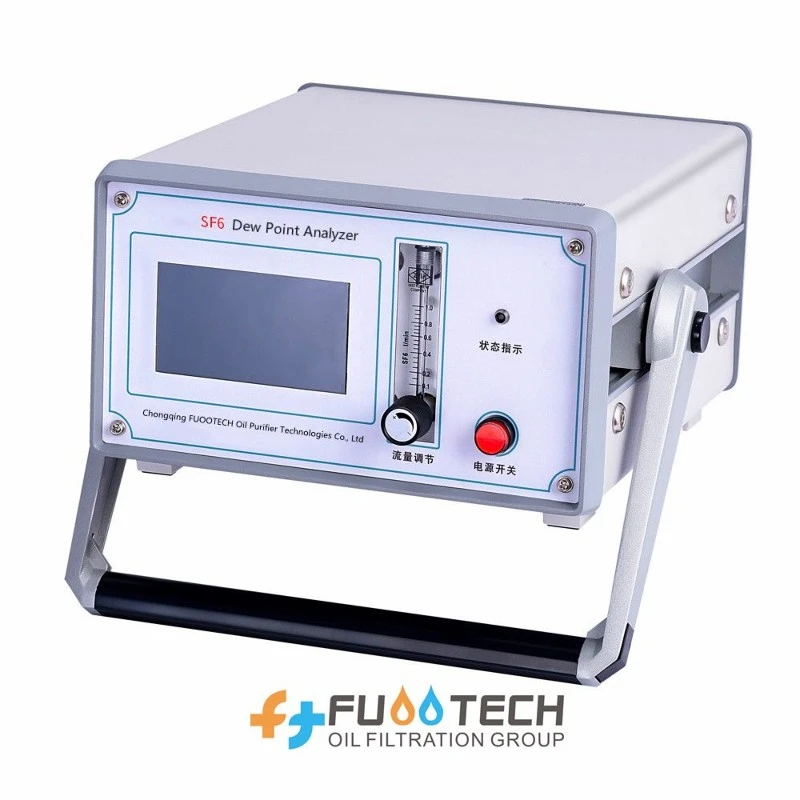

FT-LD Intelligent Dew Point Analyzer is advanced, intelligent. It is advanced in principle, degree of automation, convenience, especially it adopts Europe Standard technique, to ensure the data to beaccurate and steady.
FT-LD Intelligent Dew Point Testing Machine uses intelligent self-calibration technology, wide measuring range, fast response, high accuracy, good linearity, dynamic display measurement curve. While the instrument with automatic dryer, can greatly shorten the measuring time.
This instrument is widely applied to power system, petroleum chemical enterprise, metallurgical industry, research institute to test humidity of the air, nitrogen, inert gases and others gases which not included corrosive medium, especially to test the humidity of the SF6.
Technical Parameters
|
Product Name |
FT-LD Portable SF6 Dew Point Tester |
|
|
Measurement Range |
Dew point value |
-80ºC~+20ºC |
|
Micro water value |
0~19999uL/L |
|
|
Accuracy |
±0.5ºC(-60ºC~+20ºC |
|
|
±1.0ºC(-80ºC~-60ºC) |
||
|
Resolution |
Dew point value |
0.1ºC |
|
1uL/L |
1uL/L |
|
|
Response time (+20ºC,0.1Mpa) |
63% need 5s, 90% need 45s (-60 ºC ~ +20 ºC) |
|
|
63% need 10s, 90% need 240s (+20 ºC ~ -60 ºC) |
||
|
Sampling flow rate |
0.6L/min±20% |
|
|
Pressure range |
0~1.0Mpa |
|
|
Temperature |
-20ºC~+60ºC |
|
|
Humidity |
0~100%RH |
|
|
Storage Temperature |
-20ºC~+80ºC |
|
|
Charging time |
4 hours |
|
|
Dimension |
250×150×300mm3 |
|
|
Weight |
3.5kg |
|
If you are interested in our FT-LD Dew Point Analyzer,welcome to contact us for more info!
