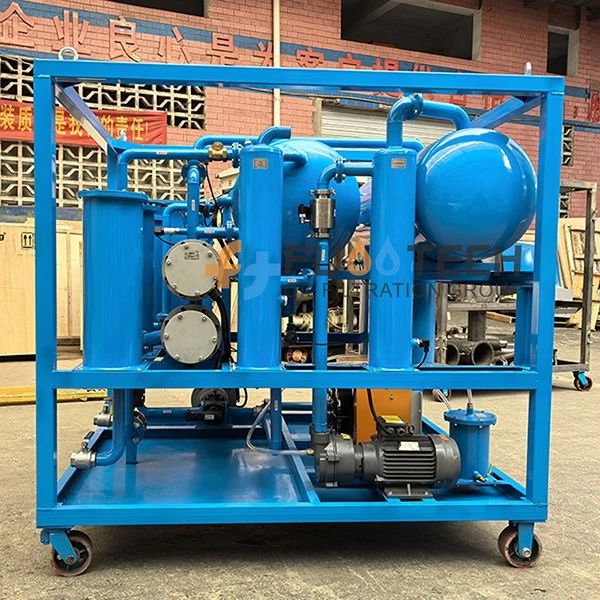

Our Series FTY-J Vacuum Coalescence-separation Turbine Oil Purifier Machine is specially designed for purifying various unqualified turbine oil (such as ISO–VG–46/32/68/100, etc.) from steam turbine system, gas turbine system & Fans, especially for serious emulsion turbine oil and it effectively filter the turbo 68 oil without problem, it can quickly and efficiently break emulsification, separate water (emulsified and dissolved water), gas, dirt, particles from oil, so that make sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely.
This equipment use a special polymer materials as filter medium combined with vacuum separating technology and coalescing-separation dehydration system to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clean.
Technical Parameter
|
Item |
Unit |
FTY-J-10 |
FTY-J-20 |
FTY-J-30 |
FTY-J-50 |
FTY-J-100 |
FTY-J-150 |
FTY-J-200 |
FTY-J-300 |
|||||
|
Flow rate |
L/hr |
600 |
1200 |
1800 |
3000 |
6000 |
9000 |
12000 |
18000 |
|||||
|
Working Vacuum Degree |
MPa |
-0.06 ～ -0.095 |
||||||||||||
|
Working Pressure |
MPa |
≤ 0.5 MPa |
||||||||||||
|
Temperature Range |
℃ |
10 ～ 80 |
||||||||||||
|
Power Supply |
400 VAC, 3 Phase, 50 Hz (or as per requirement) |
|||||||||||||
|
Heating power |
kW |
18 |
24 |
30 |
48 |
60 |
90 |
135 |
180 |
|||||
|
Total power |
kW |
20 |
27 |
33 |
52 |
68 |
102 |
151 |
200 |
|||||
|
Inlet/outlet caliber |
mm |
Ф25 |
Ф25 |
Ф25 |
Ф32 |
Ф42 |
Ф42 |
Ф50 |
Ф65 |
|||||
|
Noise level |
db |
≤70 ~ 80 |
||||||||||||
|
Continuous working time |
Hours |
≥ 100 |
||||||||||||
|
Weight |
kg |
400 |
450 |
500 |
600 |
780 |
900 |
1200 |
1550 |
|||||
|
Dimension (without Trailer) |
mm |
1280× 1100× 1450 |
1350× 1200× 1450 |
1450× 1350× 1600 |
1550× 1500× 1670 |
1650× 1660× 1700 |
1800× 1350× 1880 |
1900× 1400× 1950 |
1950× 1630× 2090 |
|||||
|
Oil Result after Filtration |
Moisture (Water Content) ≤40PPM |
|||||||||||||
|
Gas Content ≤0.1% |
||||||||||||||
|
Filtering Accuracy ≤3micron, 99% filter efficiency |
||||||||||||||
|
Demulsification Value ≤12min (GB/F 7305) |
||||||||||||||
|
Cleanliness ≤NAS1638 Class 4 |
||||||||||||||
Why Purification of Turbine Oil is Important ?
When in operation, the turbine oil used for cooling, lubrication and speed regulation of various turbine or hydro-turbine sets are easily prone to pollution, more water and impurity content, and emulsification, which seriously affect the operational safety and useful life. The traditional treatment method can not solve the problem, and is easy to cause waste and environmental pollution.
Our FTY-J Turbine oil vacuum dehydrator and Coalescence separation filtration system is specially designed and applied to on-line processing of the turbine oil of the steam engine, gas turbine and water turbine in the field of electricity, chemicals, paper making, metallurgical industries. It can not only ensure the regular work of adjusting system and lubricating system, but also purify low viscosity hydraulic oil and coolant oil.
If you are interested in our FTY-J Vacuum Coalescence-separation Turbine Oil Purification Plant , pls contact us for more info.
