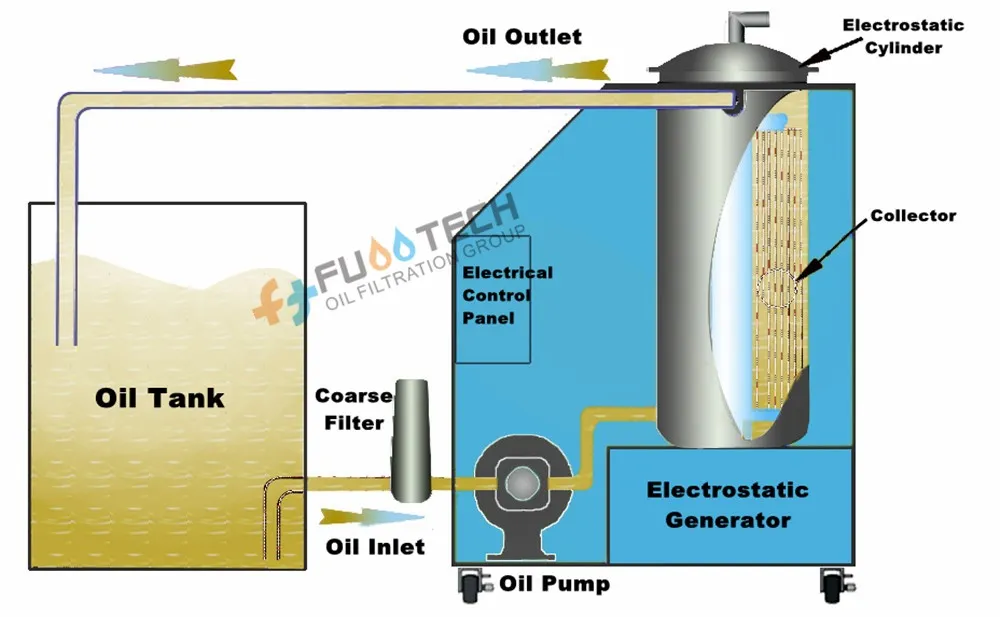

Unlike the traditional method using filtration, FUOOTECH JD-T Series Electrostatic Oil Cleaner use electrostatic technology to extract all sizes of insoluble contaminants from the oil. The extraction of particle can be as small as 0.01 micron meter. This effectively removes fine particle/ soft contaminant/ varnish from oil, which cannot be removed by any fine filter.
JD-T Series Electrostatic Oil Cleaning Machine is one of the most advance technology to keep your lubrication (mineral oil) clean and long lasting. It also will help your machine free of abrasive materials and enhance the life span of your machine.
FUOOTECH JD-T Series Electrostatic Oil Purifier Machine is widely used in power plant, turbine lubrication system, Hydraulic Press, Aviation, Construction Machinery,injection mould equipment, rubber moulding plants, Aluminium/ Non Ferous Extrusion, Plywood hot press, servo control hydraulic system, leather processing, shoe making, Mining equipment, automobile industries, steel industries, sugar mill, semi conductor industries, paper manufacturing plants and all types of plants which are using mineral oil for their machines.
Electrostatic Oil Cleaner has proven to be most effective way in modern oil management. It is international widely use now.
Technical Parameters
|
Items |
Unit |
JD-T18 |
JD-T32 |
JD-T40 |
JD-T60 |
JD-T100 |
|
Flow Rate |
L/min |
18 |
32 |
40 |
60 |
100 |
|
Applicable Oil Types |
ISO VG 32,46,68,100,etc. |
|||||
|
Oil Temperature |
℃ |
40 |
||||
|
Power Supply |
/ |
380V, 50Hz, 3Ph (or as per request) |
||||
|
Total Power |
KW |
0.75 |
1.5 |
1.75 |
2.2 |
3.75 |
|
Oil Hose DN |
mm |
Φ19 |
Φ19 |
Φ25 |
Φ32 |
Φ42 |
|
Dimension (L*W*H) |
mm |
1000 * 700 * 1280 |
1260 * 700 * 1280 |
1350 * 1000 * 1300 |
1370 * 1000 * 1330 |
2100 * 1250 * 1580 |
|
Weight |
Kg |
210 |
330 |
450 |
520 |
600 |
|
Oil Data after Cleaning |
Filter Accuracy: 0.02 micron |
|||||
